Automated Industrial Overlock Sewing Machine for Towels ET-5812/JWB

Automated Industrial Overlock Sewing Machine for Towels ET-5812/JWB

High-Speed Roll-to-Roll Longitudinal Seaming System

Supplier’s customization ability verified

Machine Dimensions
Material Handling
Stitching & Speed
Control Systems

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

content
Specifications
Video

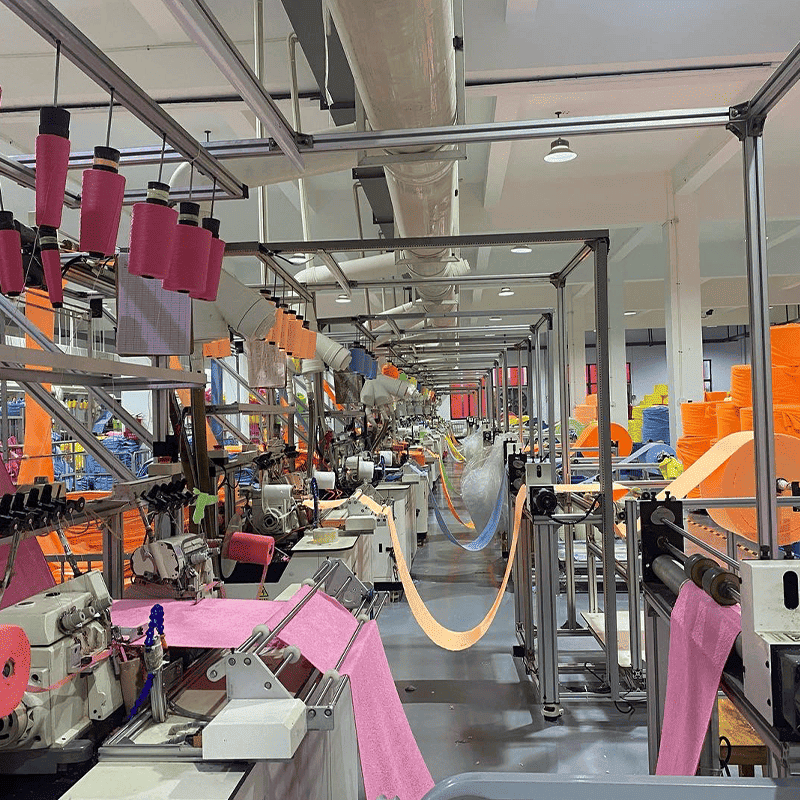

Production Line
Layout
Key Features
Applications

Content

This automatic overlock sewing machine for towels is specifically designed for efficient longitudinal sewing of weft and warp knitted towels. It can perform continuous, high-speed, and extremely precise sewing operations. Additionally, this equipment supports the processing of unlimited lengths of fabric and is an ideal choice for achieving large-scale and uninterrupted production.

By optimizing the longitudinal sewing process, the machine significantly enhanced production efficiency, while also greatly reducing the need for manual intervention and labor costs. With its stable operation, efficient integrated workflow, and high production consistency, this equipment provides an outstanding solution for manufacturers aiming to upgrade to modern and automated towel production systems.

Technical Specifications

Product Size: Width range from 23–80 cm, with unlimited length capability.

Raw Material: Compatible with weft knitted fabric.

Certifications & Patents: CE certified. Holds domestic and international patents.

Specifications

Key attributes
Packaging and delivery
Technical Specifications

Voltage	380 V	Core Components	Engine, Motor
Machinery Test Report	Provided	Video Outgoing Inspection	Provided
Warranty	1 Year	Weight (kg)	1450
Place of Origin	Jiangsu, China	Brand Name	TPET

Model NO.	ET-3360
Voltage	380 V
Power	5kW
Air Presser	0.6Mpa
Dimention	900 * 200 * 200cm
Size Range	69-90cm
Sewing SPD	2000-3500r/min
Efficiency	350pcs/h
Weight	1450kg

Video

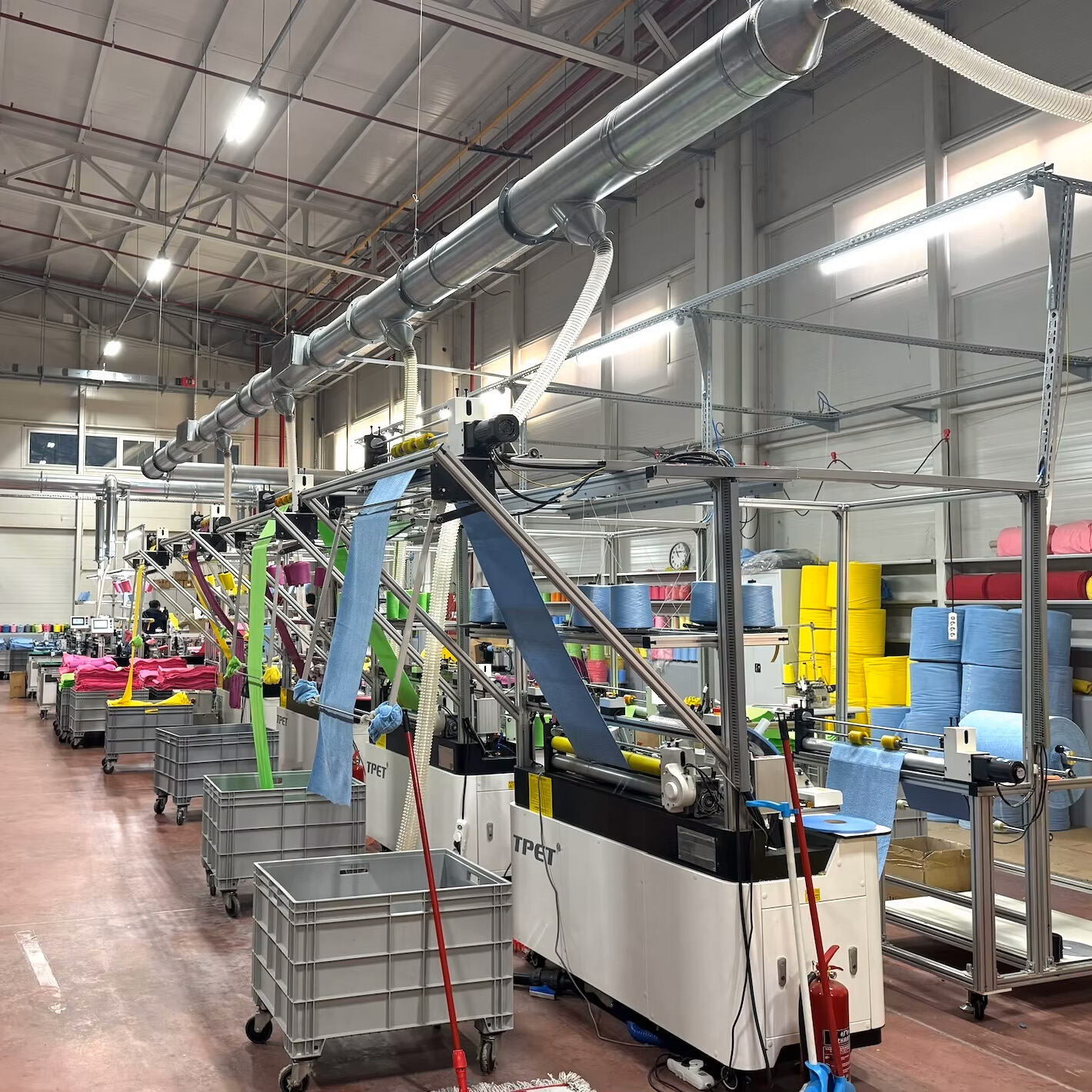

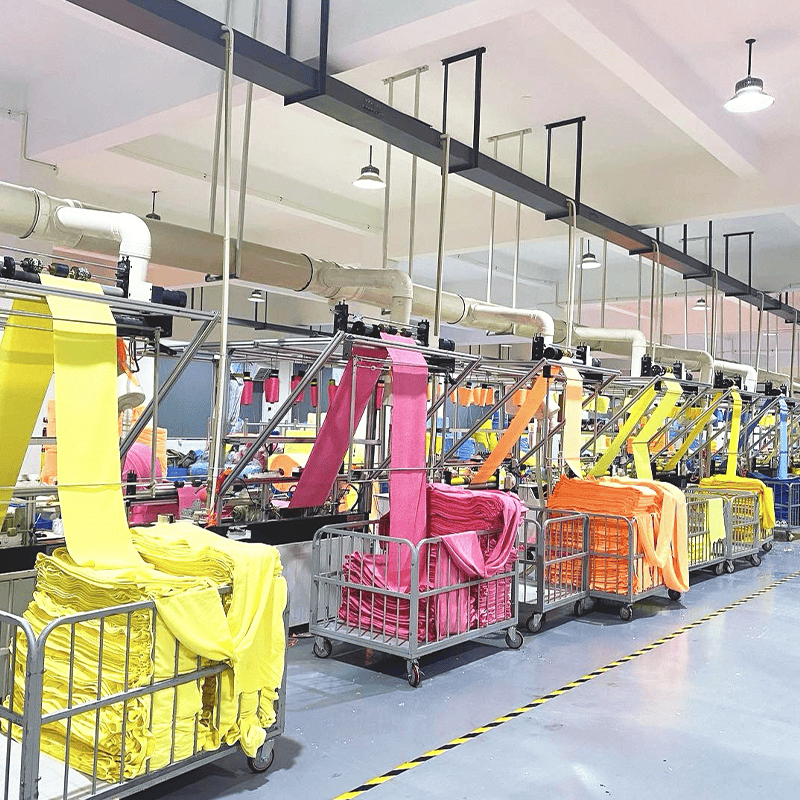

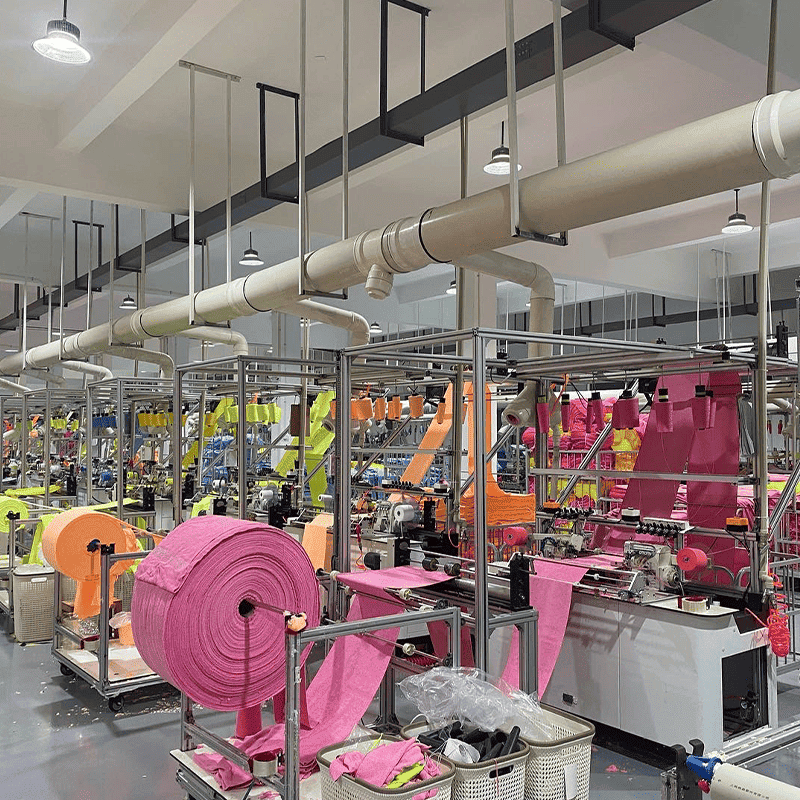

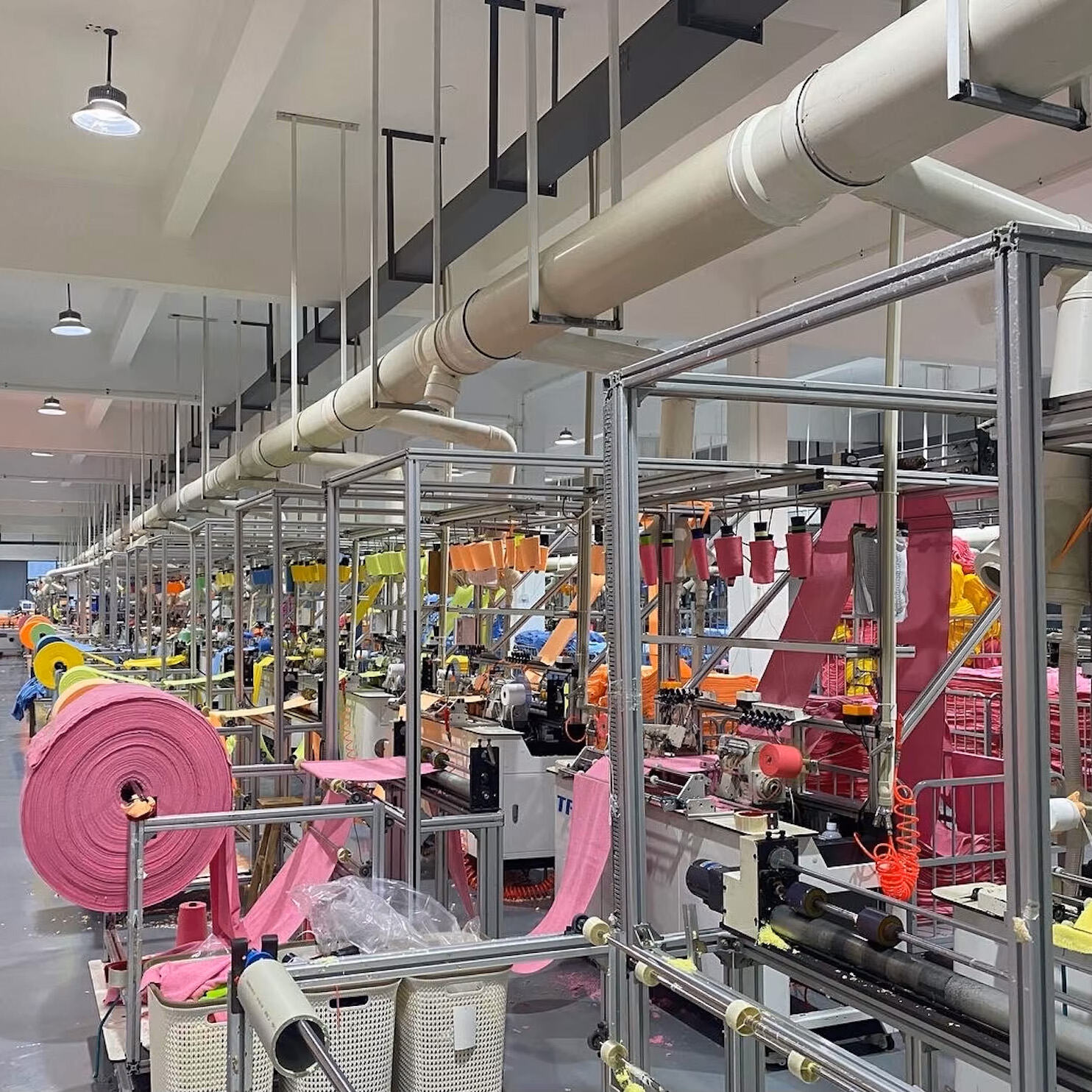

Production Line

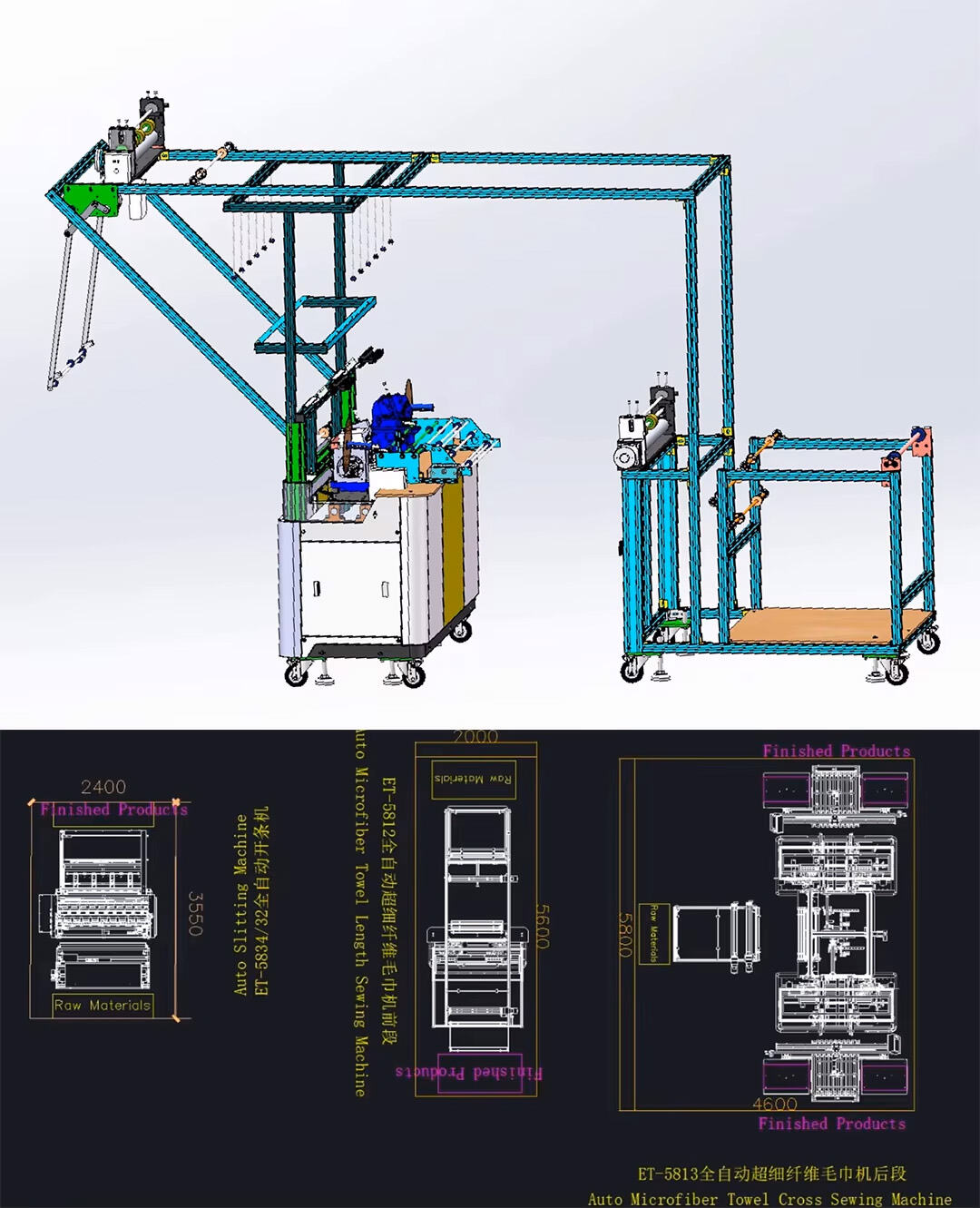

Layout

Key Features

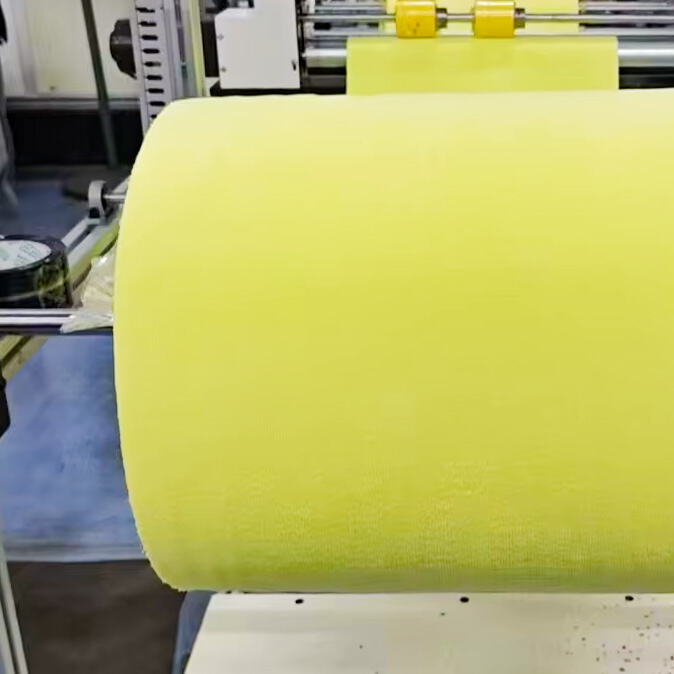

Automatic Feeding & Deviation Control

It can handle rolled raw materials (up to 1 meter in diameter) and is equipped with a pre-sewing skew correction system to ensure straight and perfect stitches.
