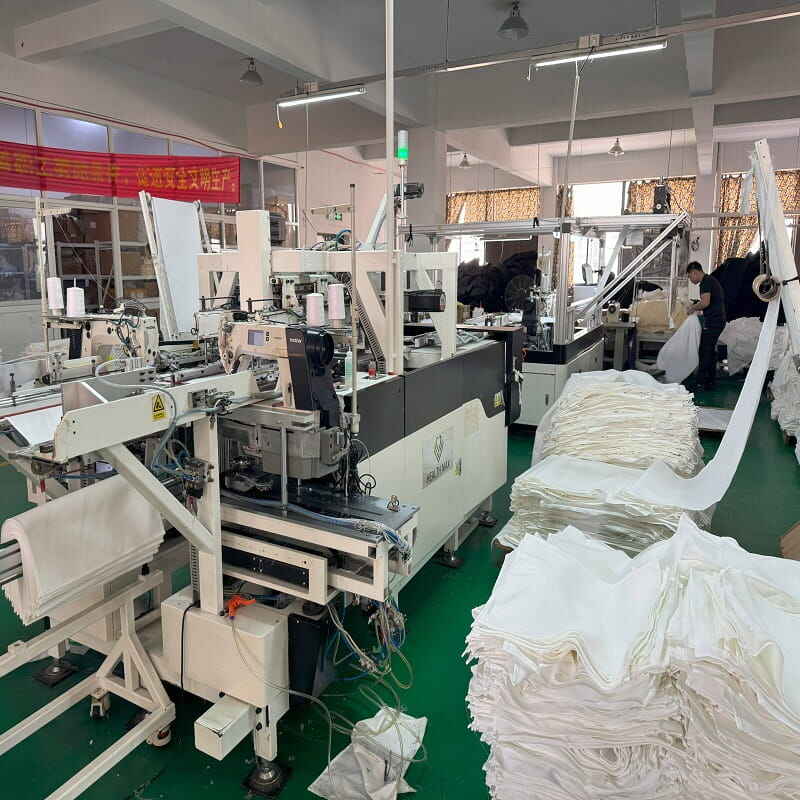

Fully Automated Transverse Hemming and Stacking Line for Cotton Towels
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Production Capacity | 500-550pcs/h | Core Components | PLC |
| Voltage | AC380V | Power(W) | 6kW |
| Warranty | 1 Year | Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided | Place of Origin | Jiangsu, China |
| Weight (KG) | 1800 | Brand Name | TPET |
| Dimension(l*w*h) | 4300 * 2300 * 1900 mm | ||
Single item
| Model NO. | ET-5835-HS |
| Voltage | AC380 V |
| Power | 6kW |
| Air Presser | 0.6Mpa |
| Dimention | 4300 * 2300 * 1900 mm |
| Size Range | Folded edge :1.0cm Width :25cm-54cm Length :47cm-90cm |
| Efficiency | 500-550pcs/h |
| Weight | 1800kg |
The intelligent system detects and automatically replaces the bottom thread bobbin, significantly reducing machine downtime and ensuring uninterrupted and continuous operation of the production process.

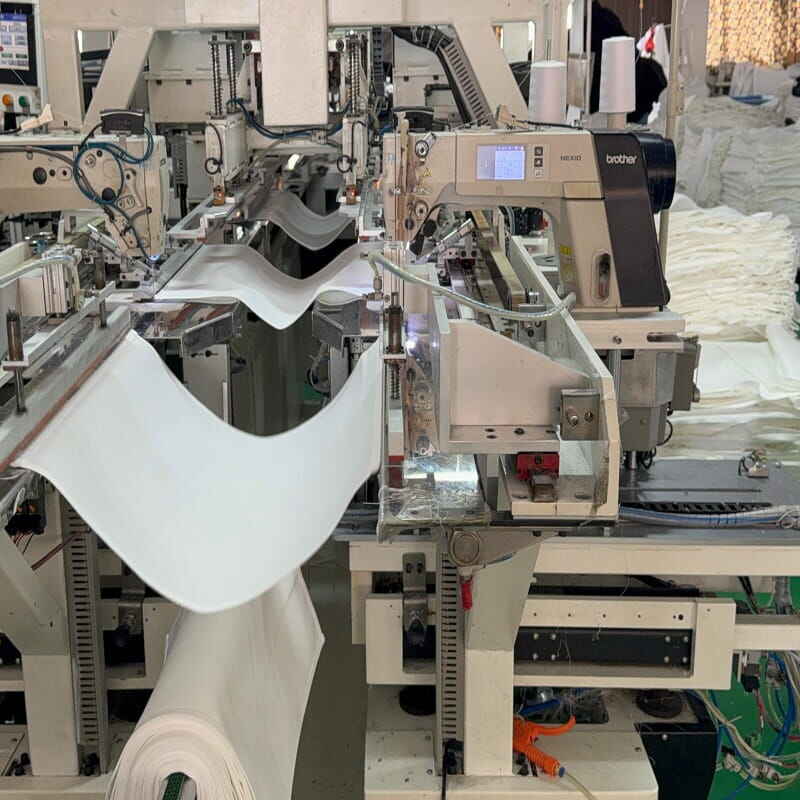

Integrating the cross-cutting and hemming processes seamlessly, this machine can process towels ranging in length from 47cm to 90cm, and can consistently achieve a hemming width of 1cm each time.
This machine features a vibration-resistant, heavy-duty steel frame structure and is equipped with an OMRON control system that has obtained CE certification. This ensures the stability of the equipment during long-term operation and the precision of high-speed processing.
The finished towels are automatically discharged and seamlessly transported along the conveyor belt to the end of the production line, where they are neatly stacked, thereby minimizing the need for manual handling.
