Industrial Automatic Microfiber Towel Cross Cutting & Overlock Machine ET-5811

High-Speed Transverse Hemming Solution for Knitted Fabrics (Up to 1800 pcs/hr)

Supplier’s customization ability verified

  • Machine Dimensions
  • Material Handling
  • Stitching & Speed
  • Control Systems

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Send inquiry

Content

The machine integrates the cutting and overlocking processes into a seamless flow, significantly enhancing production efficiency. It is an ideal choice for processing various microfiber products, including cleaning cloths, automotive care towels, and sports towels.

With its advanced control system, this machine is capable of ensuring precise cutting lengths and consistent edge treatment effects, achieving neat cuts, strong and uniform lockstitch seams. In addition, it features a sturdy and durable structure and is equipped with a user-friendly operation interface. For manufacturers seeking high efficiency, high speed, and standardized production of microfiber towels, it is undoubtedly a reliable and trustworthy choice.

Specifications

  • Key attributes
  • Packaging and delivery
  • Technical Specifications
Production Capacity 1800 pcs/h (30*30cm) Core Components PLC
Voltage 380 V Power(W) 6.5kW
Warranty 1 Year Machinery Test Report Provided
Video Outgoing Inspection Provided Place of Origin Jiangsu, China
Weight (KG) 1600 Brand Name TPET
Dimension(l*w*h) 3700 * 3300 * 2100 mm


Model NO. ET-5811
Voltage 380 V
Power 6.5 kW
Air Presser 0.6Mpa
Dimention 3700 * 3300 * 2100 mm
Size Range length:180-800mm, width:18-500mm
Efficiency 1800 pcs/h (30*30cm)
Weight 1600kg

Video

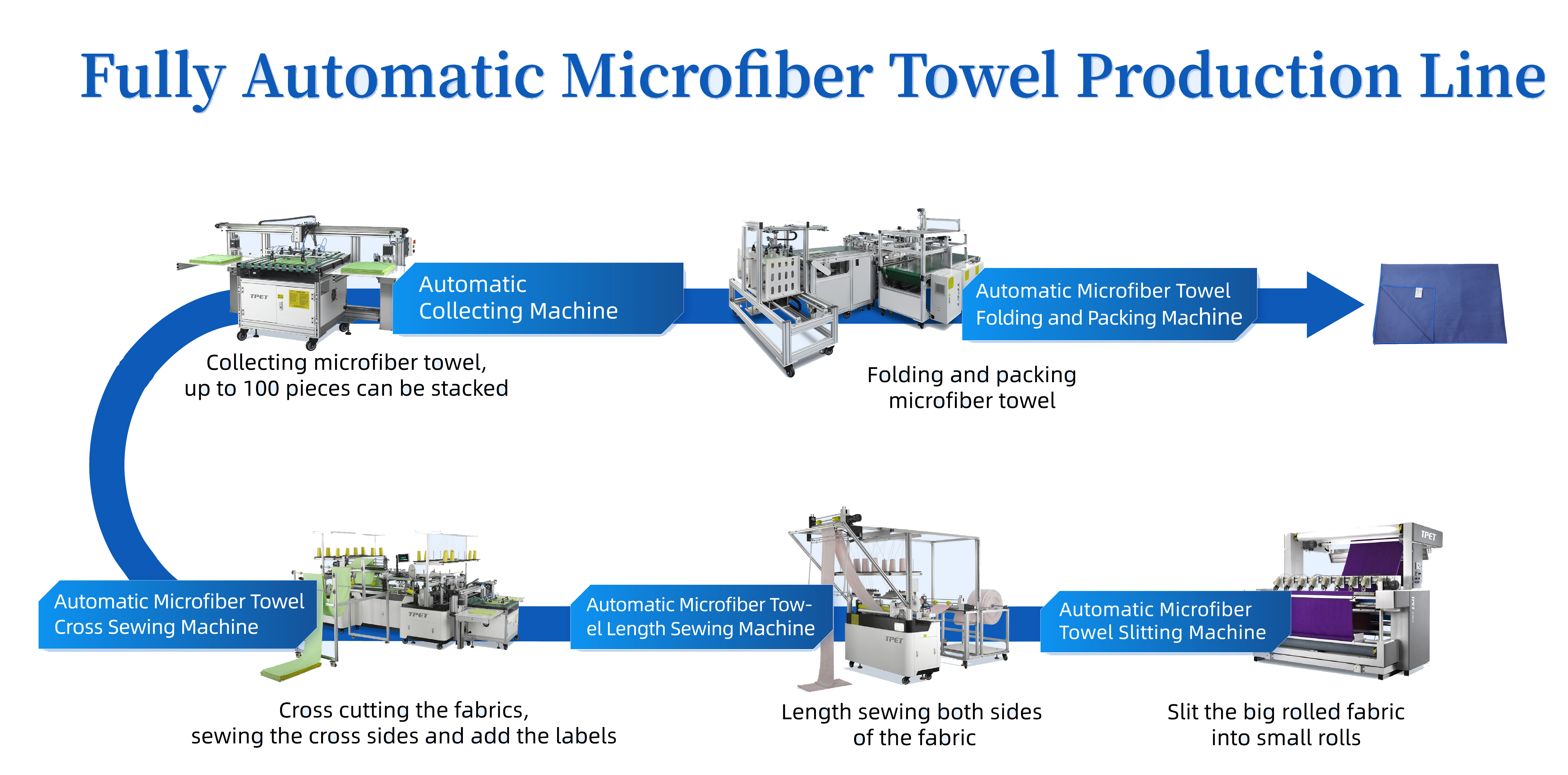

Production Line

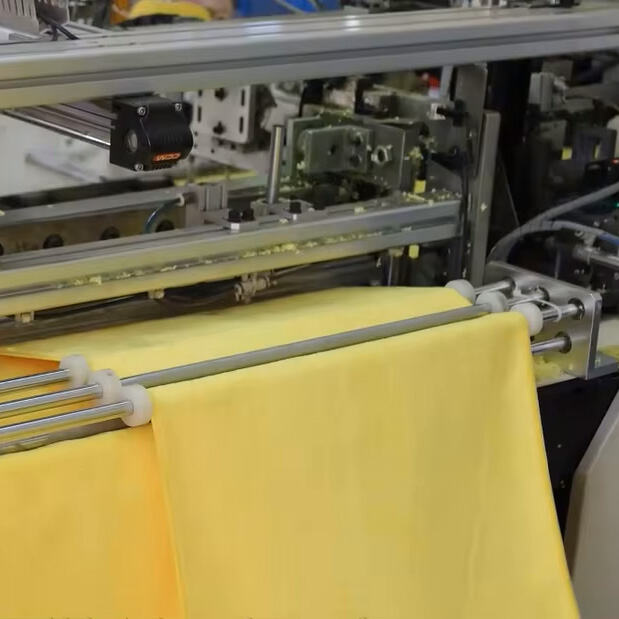

Detail

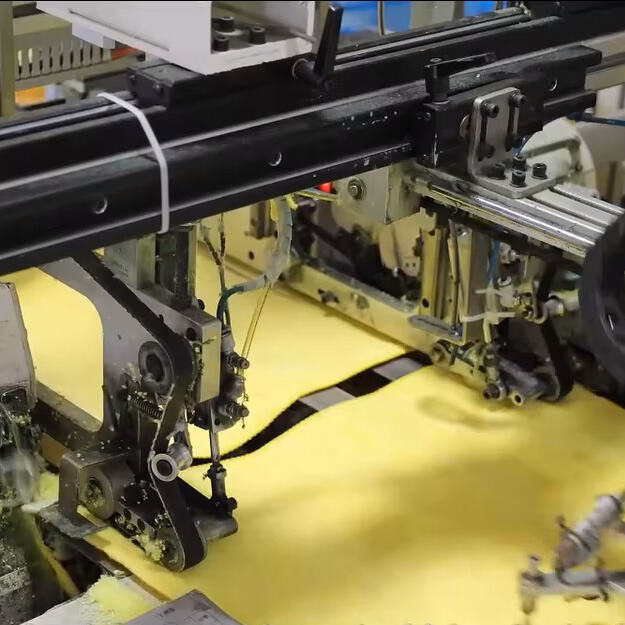

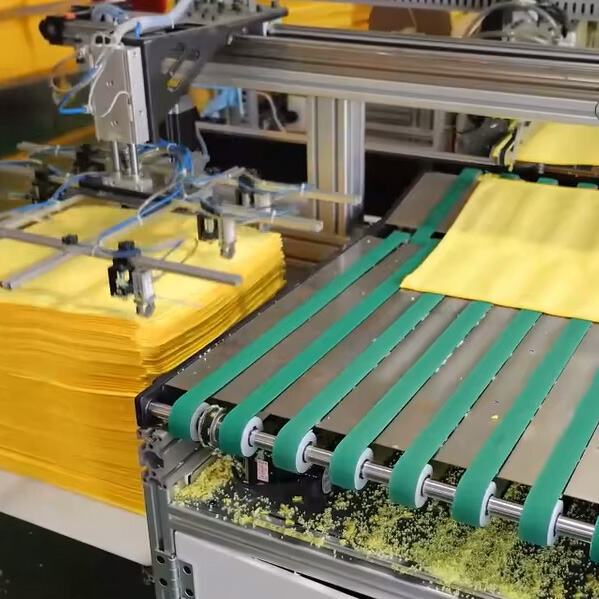

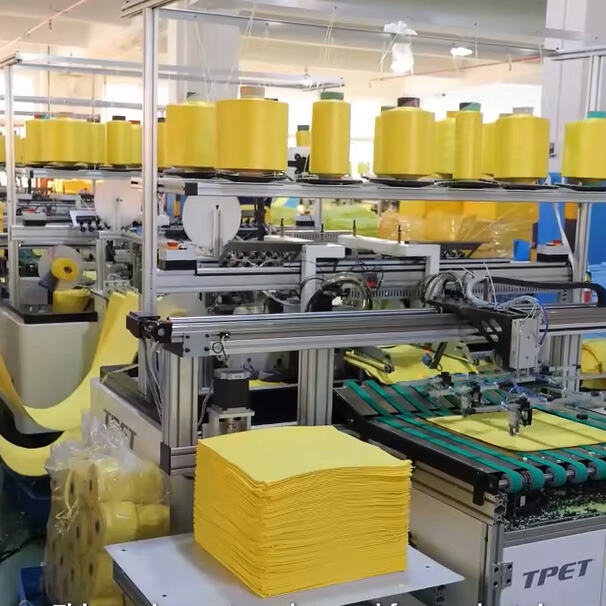

microfiber-towel-cross-sewing-machine-for-weft-knitting-fabric-13.jpgmicrofiber-towel-cross-sewing-machine-for-weft-knitting-fabric-12.jpgmicrofiber-towel-cross-sewing-machine-for-weft-knitting-fabric-11.jpgmicrofiber-towel-cross-sewing-machine-for-weft-knitting-fabric-10.jpg

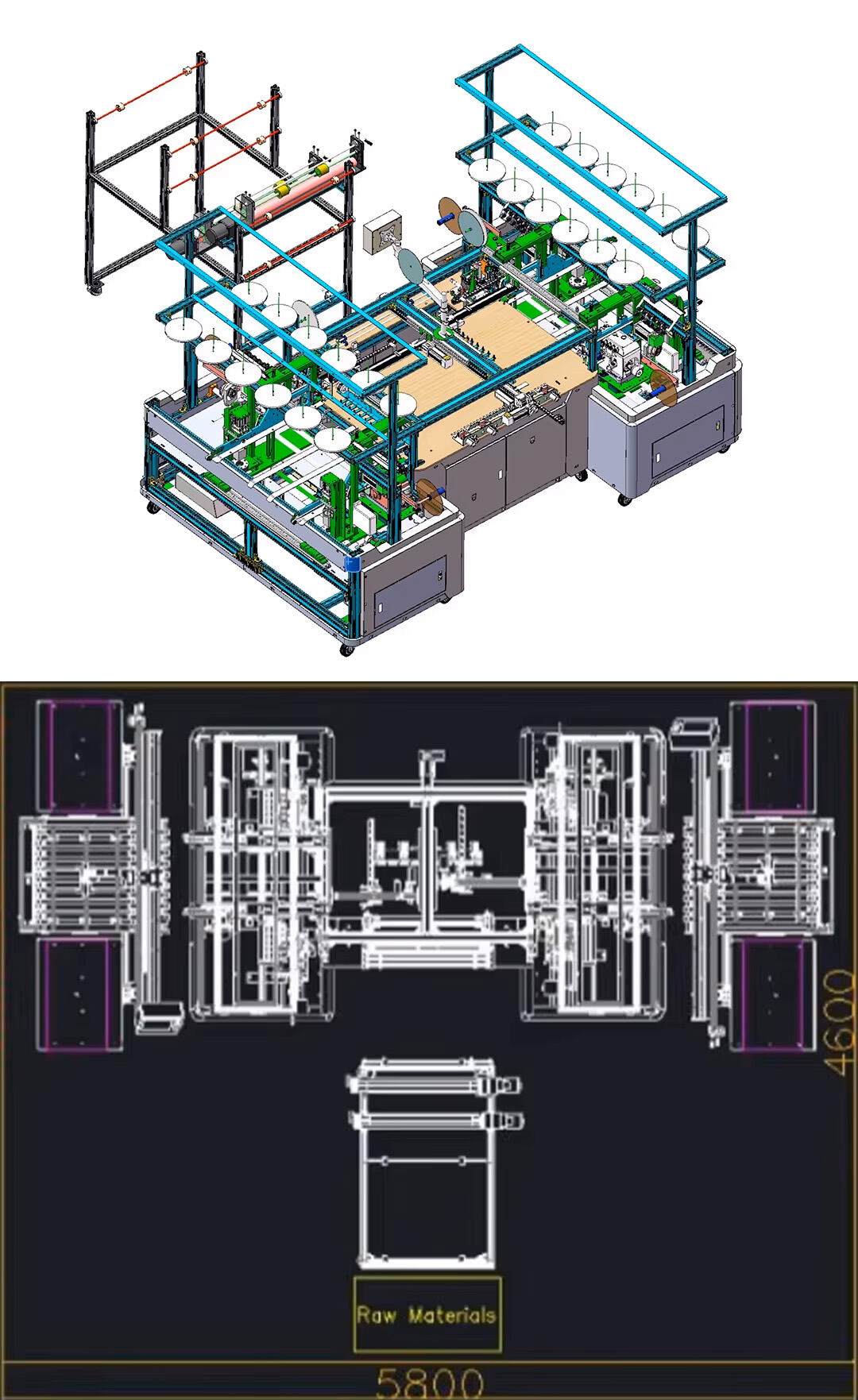

Layout


Key Features

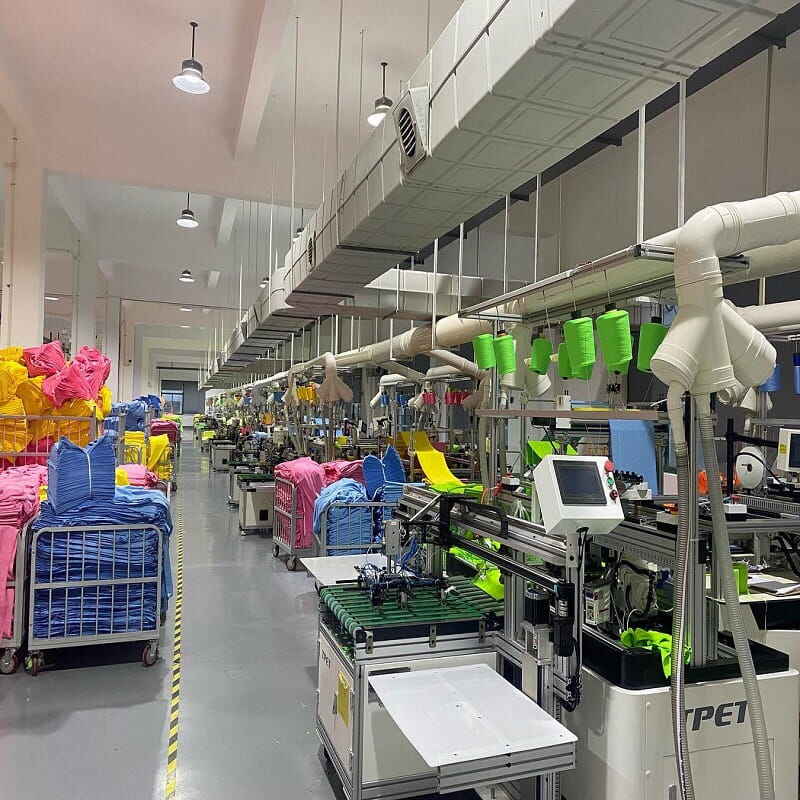

industrial automatic microfiber towel cross cutting overlock machine et 5811-1
Ultra-High Output Efficiency

Capable of continuously producing up to 1,800 finished towels per hour (just 2 seconds per piece for a 30x30cm size), maximizing your factory's throughput.

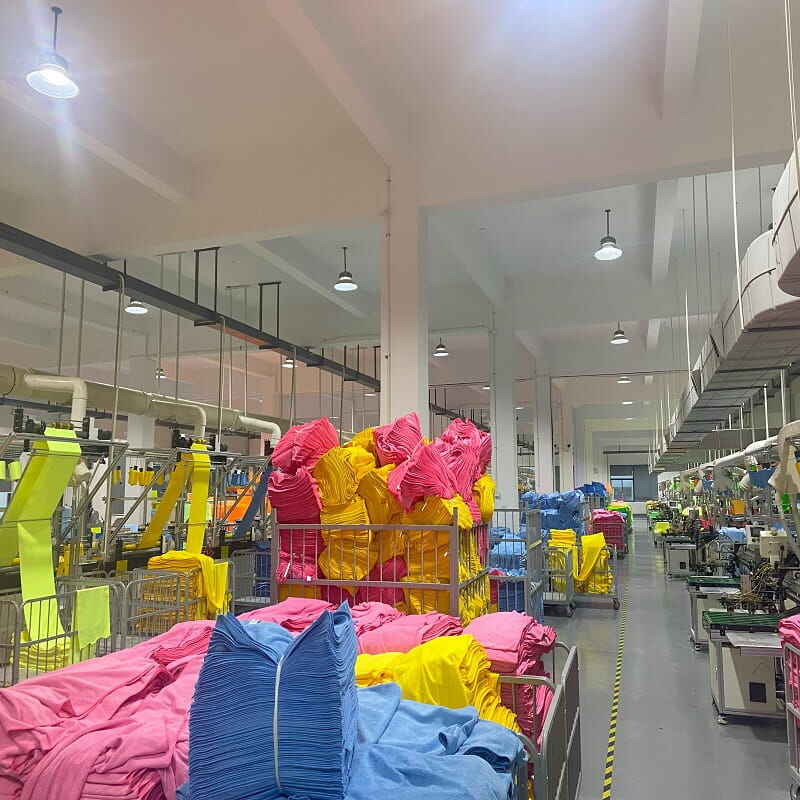

industrial automatic microfiber towel cross cutting overlock machine et 5811-2
Premium International Components

Powered by a Japanese Omron PLC and SMC pneumatic systems. Equipped with high-speed Pegasus overlock heads, with a rotational speed of up to 4500 RPM.

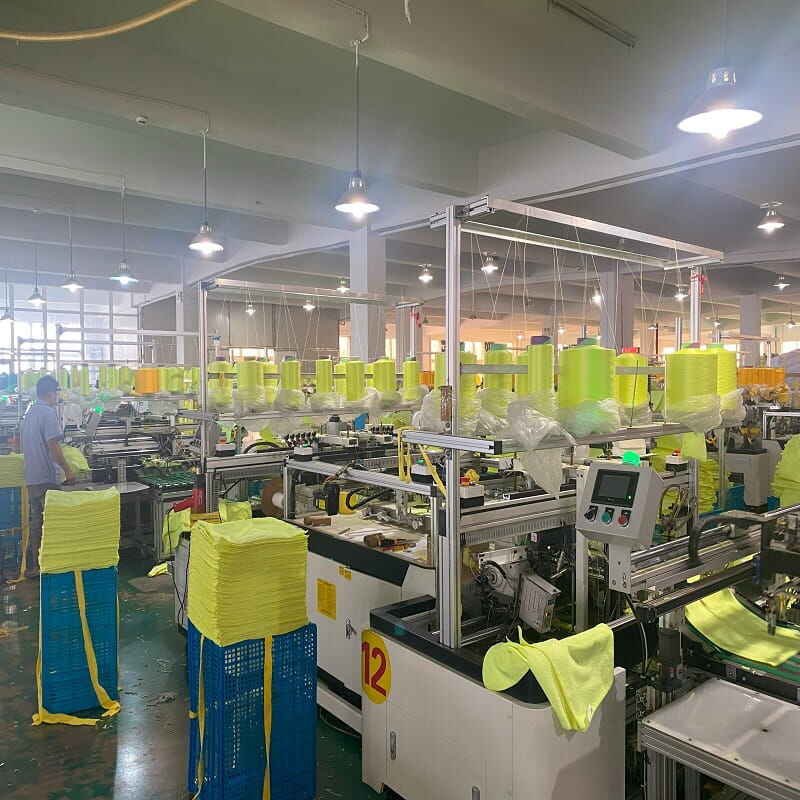

industrial automatic microfiber towel cross cutting overlock machine et 5811-3
Servo-Controlled Precision Trimming

Features an advanced servo motor thread pulling system that controls thread tails to within 3mm. Effectively prevents weft skewing (inclination) and ensures a flawless, zero-waste finish.

industrial automatic microfiber towel cross cutting overlock machine et 5811-0
All-in-One Cross Cutting & Overlocking

Seamlessly feeds rolled materials, automatically cuts them to precise lengths (adjustable from 18cm to 80cm), and flawlessly sews the transverse edges in a single workflow.

industrial automatic microfiber towel cross cutting overlock machine et 5811-6

Applications

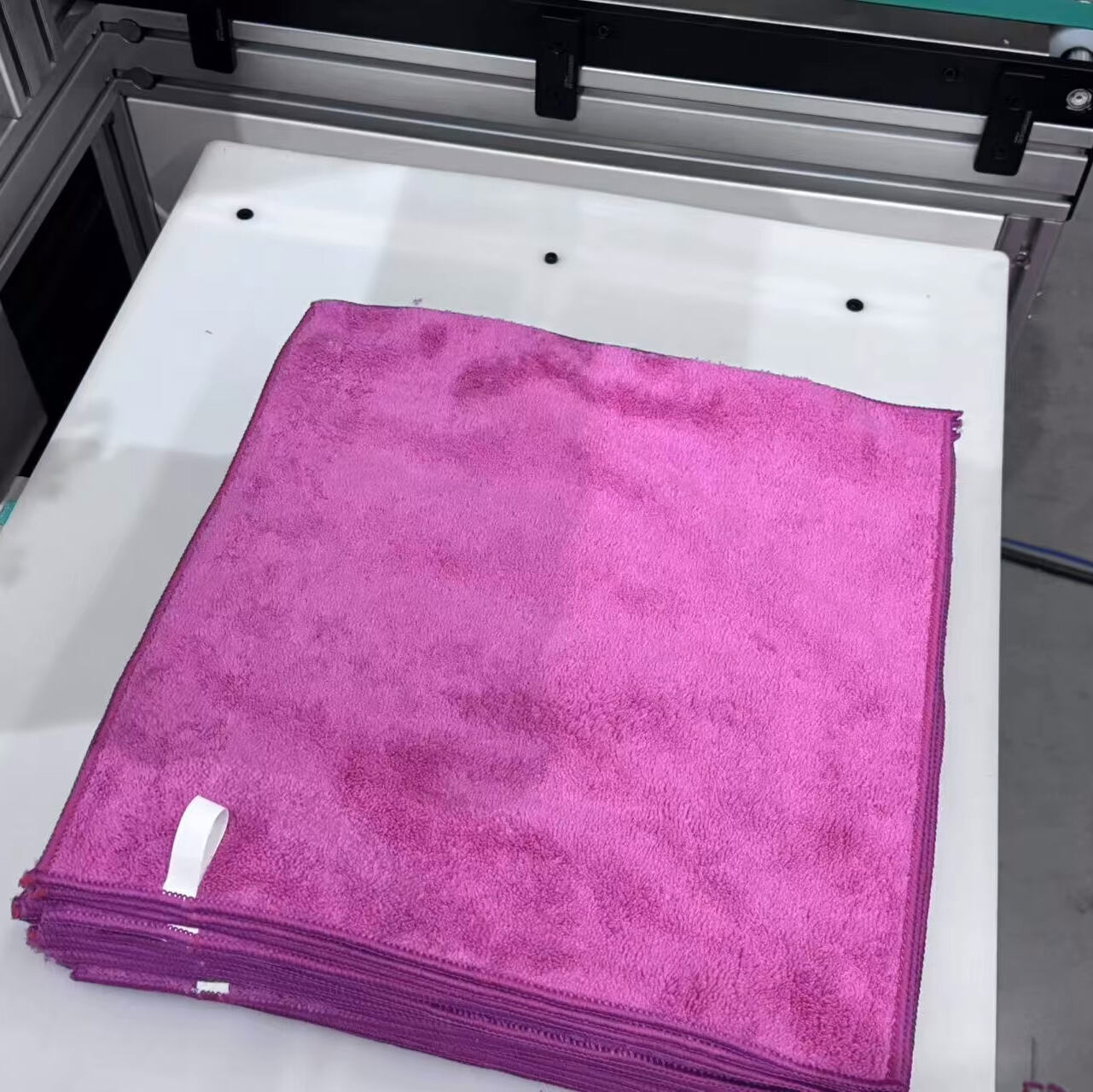

Automatic Overlocking
Automatic Overlocking

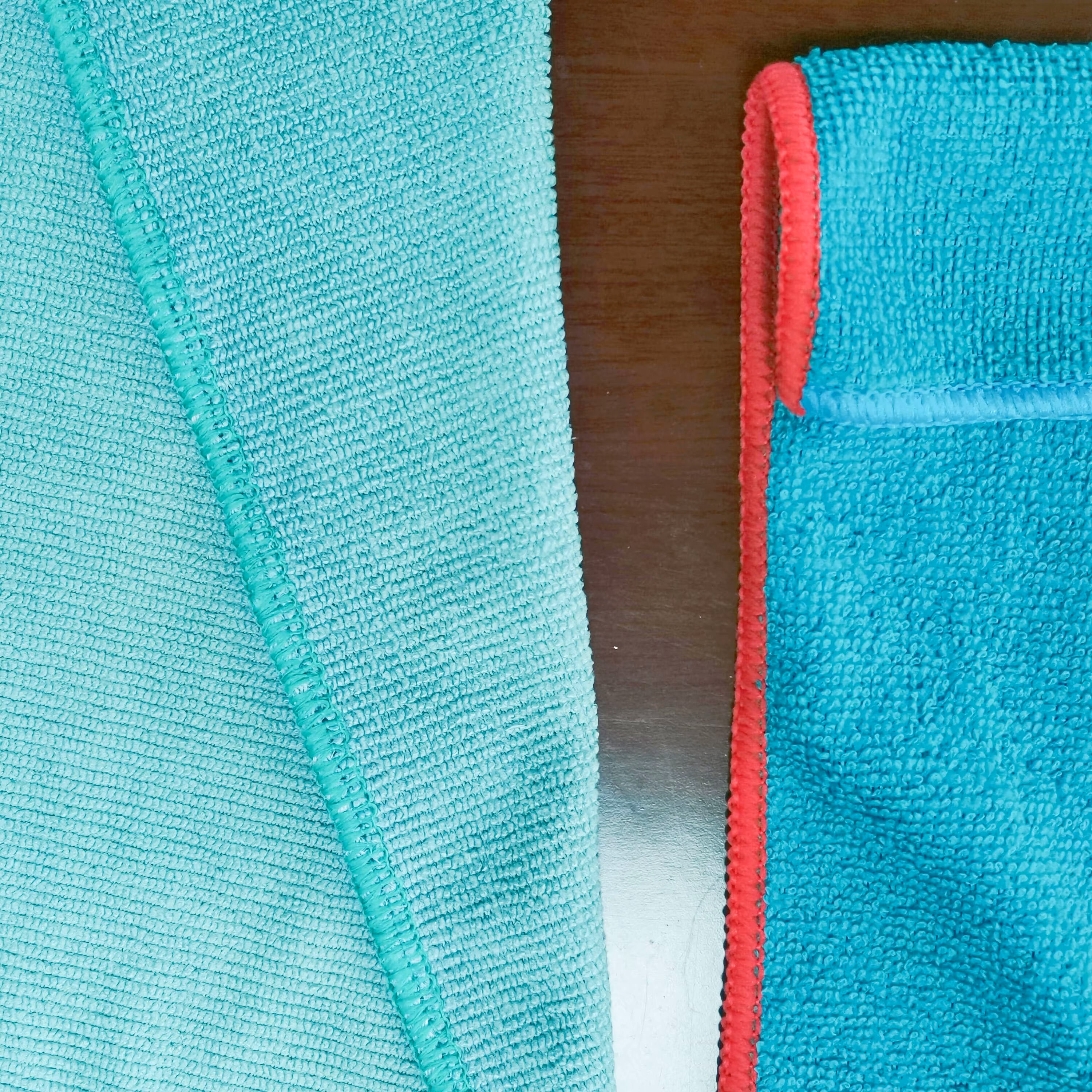

Warp and Weft Towels
Warp and Weft Towels

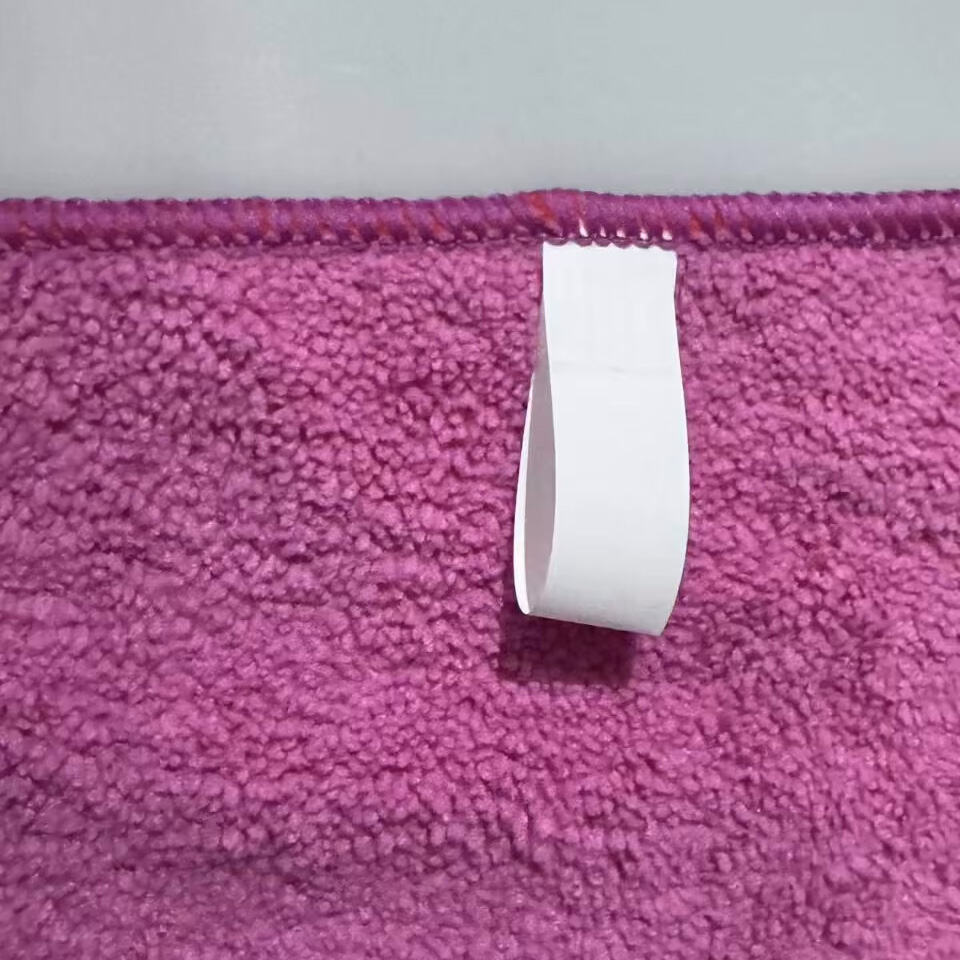

Custom Sewing Labels
Custom Sewing Labels

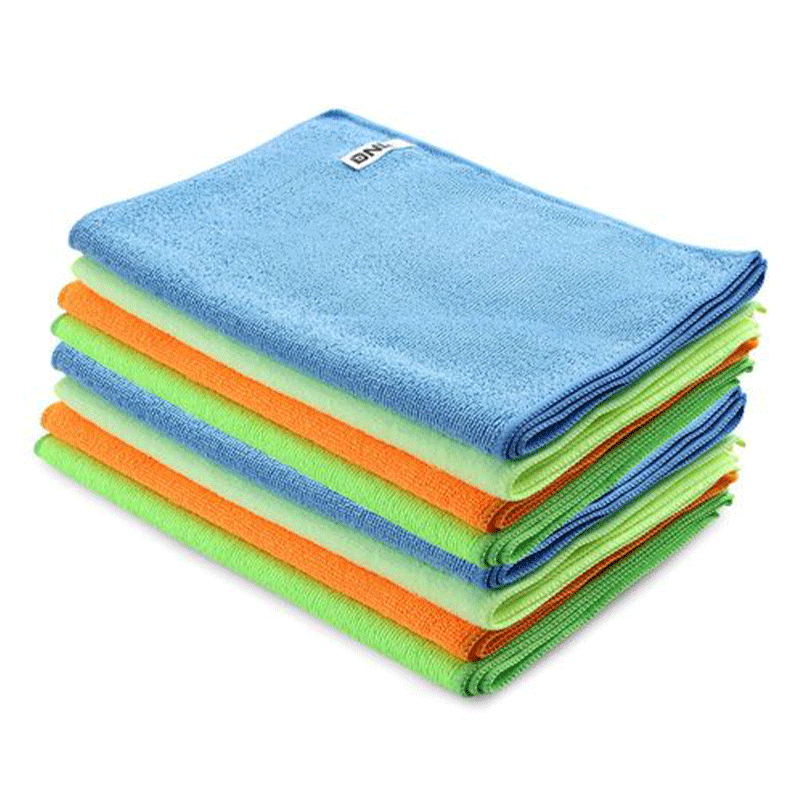

Applied to Various Microfiber Towels
Applied to Various Microfiber Towels
