Industrial Automatic Terry Towel Cross Cutting & Hemming Machine ET-5835-Ⅱ

High-Speed Transverse Sewing & Cutting Machine for Cotton Fabric Rolls

Supplier’s customization ability verified

  • Machine Dimensions
  • Material Handling
  • Stitching & Speed
  • Control Systems

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Send inquiry

Content

Key Features & Specifications:

Automated Processing: Supports automatic feeding of stacked raw materials, seamlessly integrating cutting and hemming processes.

Professional Sewing System: Integrating the sewing machines of Pegasus and BROTHER brands, it offers reliable shuttle stitch and chain stitch options to ensure durable hemming.

Precise Hemming Finishes: Offers two selectable hemming widths of 8mm or 10mm to ensure consistent edge processing quality.

Integrated Labeling: Built-in automatic label dispenser.

Optional Automation: Offer an optional automatic bobbin changer, designed to minimize downtime to the greatest extent.

Robust Construction: The main body is made of a sturdy welded frame and is reinforced by 2 mm thick curved steel plates, specially designed for long-term industrial-level applications.

Production Details:

Finished Product Size Range: Width 20 - 52 cm, Length 23 - 150 cm.

Certifications & Patents: We have obtained CE certification and hold numerous patents both domestically and internationally.

This automatic terry towel cross cutting and hemming machine is an ideal choice for various manufacturers, especially for those who need to provide efficient and reliable automated finishing solutions for cut-and-sew towels.

Specifications

  • Key attributes
  • Packaging and delivery
  • Technical Specifications
Production Capacity 600pcs/h Core Components PLC, Engine, Motor
Voltage 220V Power(W) 8.5kW
Warranty 1 Year Machinery Test Report Provided
Video Outgoing Inspection Provided Place of Origin Jiangsu, China
Weight (KG) 2500 Brand Name TPET
Dimension(l*w*h) 450*200*250cm


Model NO. ET-5835-Ⅱ
Weight 2.5t
Dimension 450*200*250CM
Power 8.5kW
Air pressure 0.6MPa
Voltage 220V
Hour capacity stitch length: 3mm width: 40cm.600pcs/h
Sewing speed 4000r/min
Size range width: 15-42cm length: 23-150cm
Label size width: 10-40mm length: 30-70mm fold label and straight label available
Stitches Available chain/lock stitch optional

Video

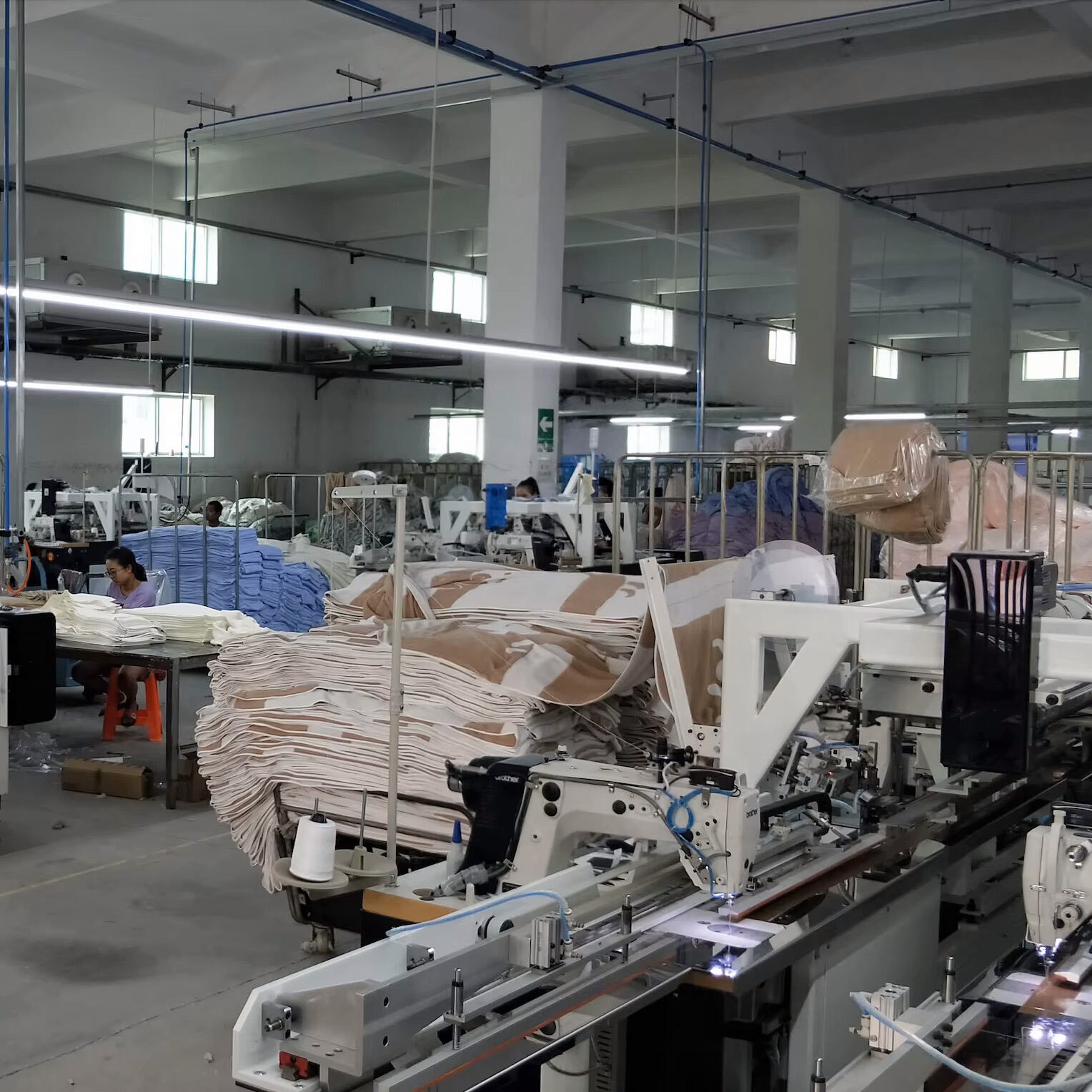

Production Line

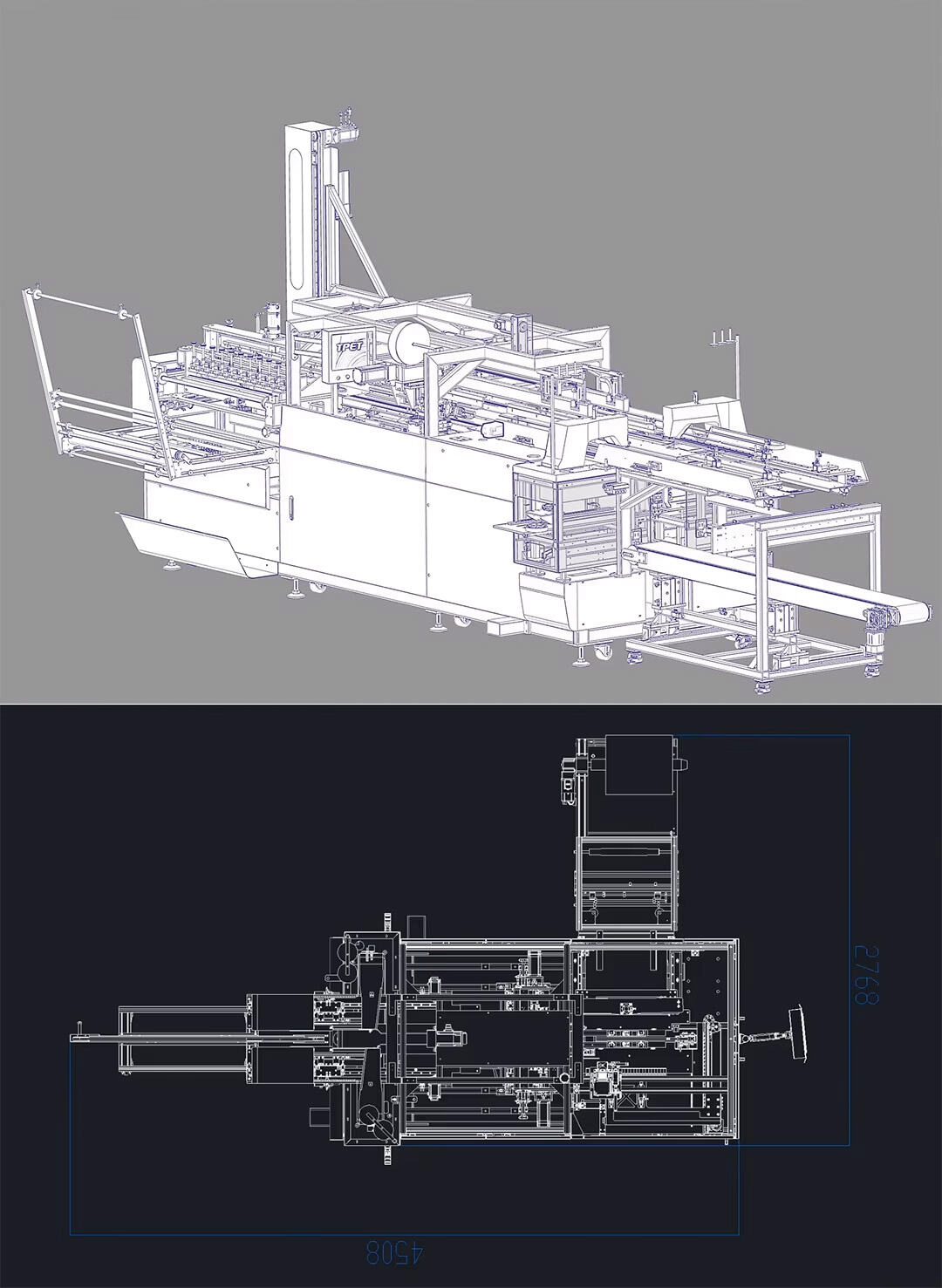

Layout


Detail

2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-14.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-15.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-16.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-18.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-17.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-19.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-10.jpg2nd-generation-automatic-terry-towel-cross-cutting-hemming-machine-9.jpg

Key Features

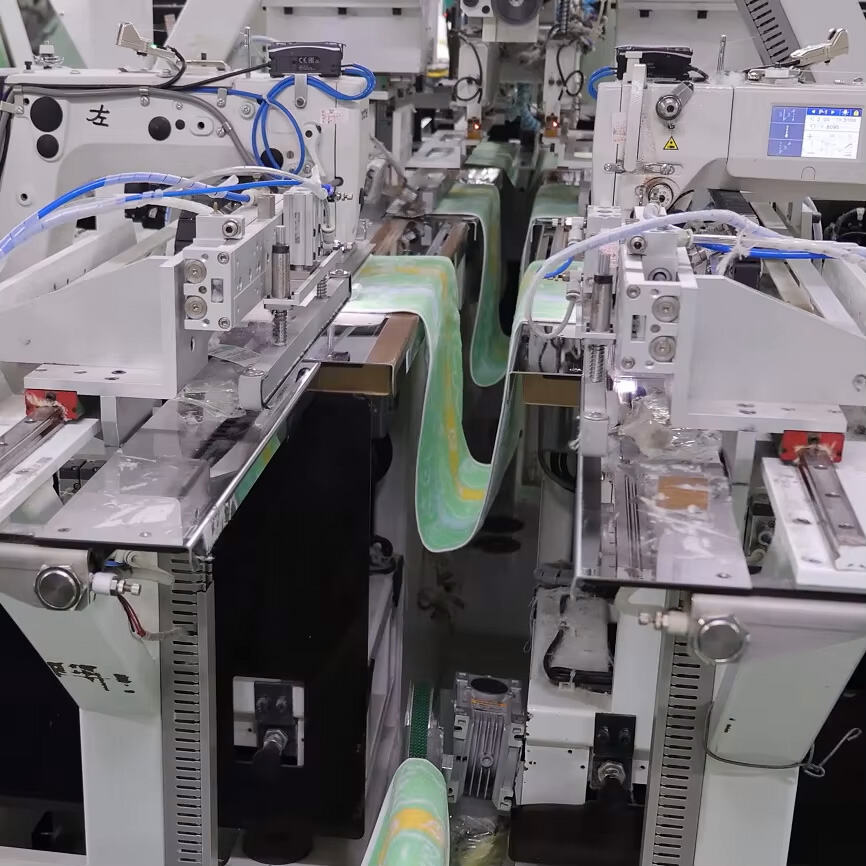

industrial automatic terry towel cross cutting hemming machine et 5835 ii-5
Auto Length Control with Precise Cutting

This machine is driven by a servo control system and features high precision and stability. It helps manufacturers achieve standardized and uniform products.

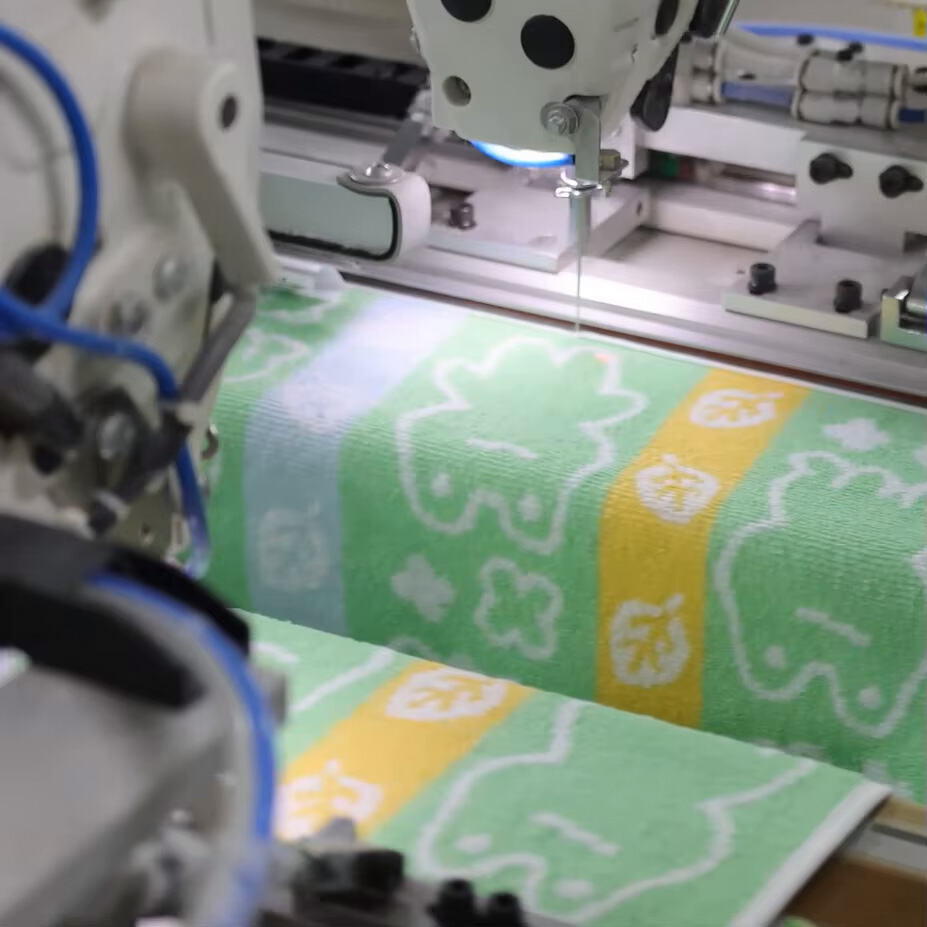

industrial automatic terry towel cross cutting hemming machine et 5835 ii-3
Two-Way Cutting Device

It is equipped with a two-way cutting device, which can efficiently process both sides of the towels.

Automatic Labeling

The automatic labeling function offers flexible configuration options, including overlapping double labels or side-by-side double labels.

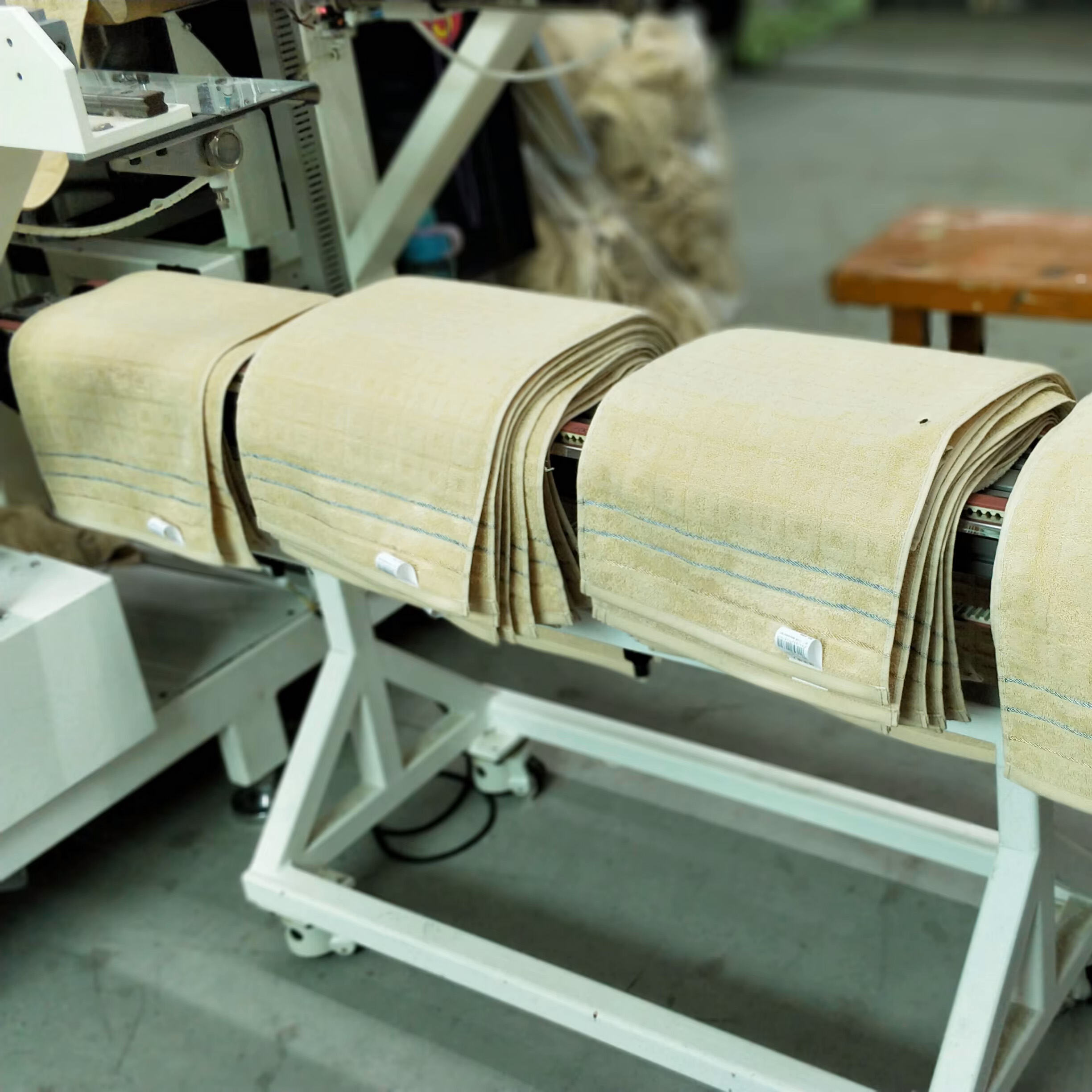

Automatic Production of Finished Products
Automatic Production of Finished Products

Finished products are automatically produced through an integrated system, which includes conveyor belt devices for achieving continuous feeding and output.

industrial automatic terry towel cross cutting hemming machine et 5835 ii-10

Applications

Hotel Towel
Hotel Towel
industrial automatic terry towel cross cutting hemming machine et 5835 ii-2
Terry Towel
Bath Towel
Bath Towel
