High-Speed Continuous 4-Side Sewing System for Microfiber Towels & Cleaning Cloths
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Production Capacity | 300 pcs/h | Core Components | PLC, Motor, Bearing, Gear |
| Voltage | 380 V | Power(W) | 6kW |
| Warranty | 1 Year | Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided | Place of Origin | Jiangsu, China |
| Weight (KG) | 1300 | Brand Name | TPET |
| Dimension(l*w*h) | 3600*2800*2310 mm | ||
Single item
| Model NO. | ET-5876 |
| Voltage | 380v |
| Power | 6kW |
| Air Presser | 0.6Mpa |
| Dimention | 3600*2800*2310 mm |
| Size Range | minimum: 25*25 cm ; maximum: 75*50 cm |
| Efficiency | 300pcs/h(30*30 cm) |
| Weight | 1300kg |
| Label size | Cold mark, single mark, folded mark, width < 5cm |
| Process description | Three circles all the way to the edge |

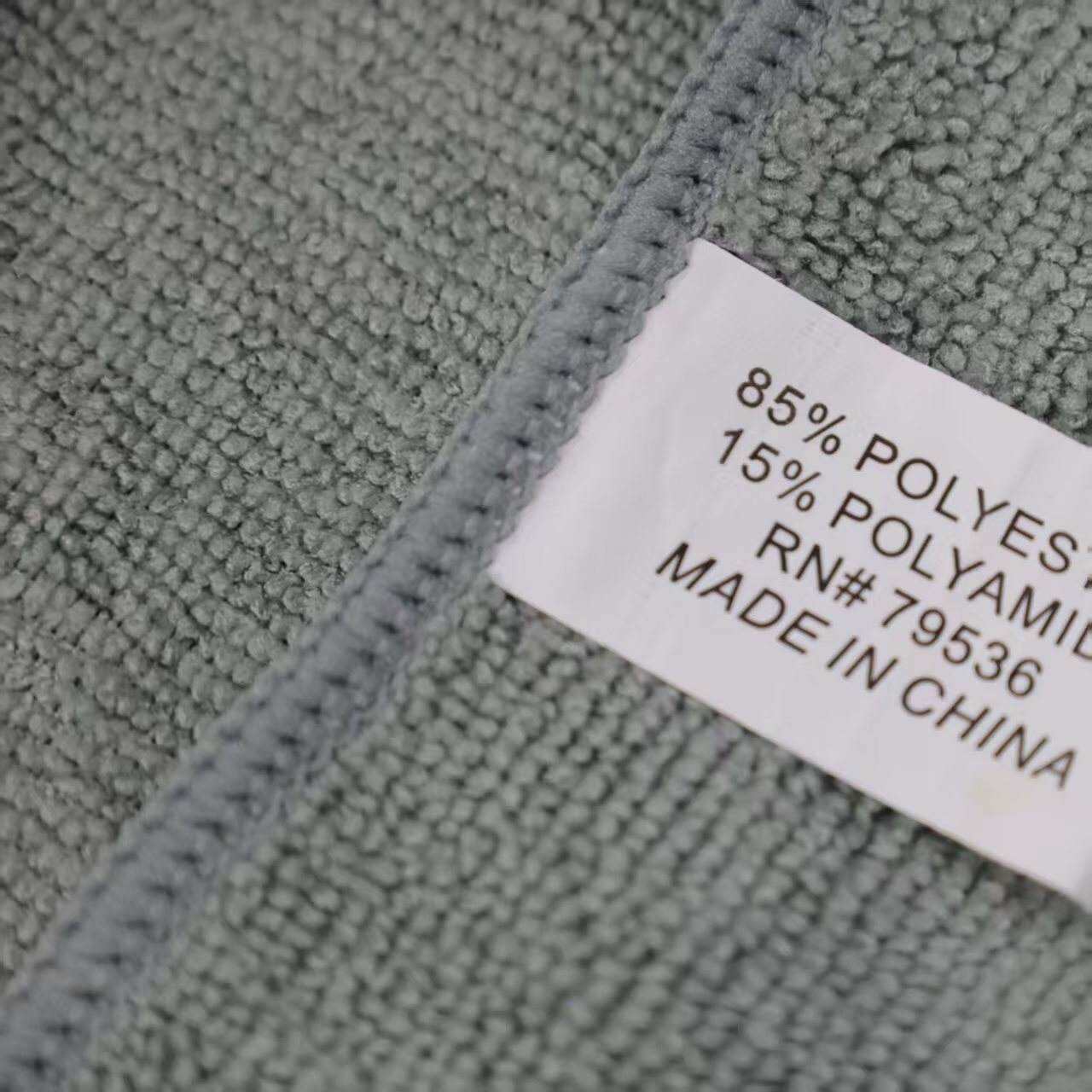

Automatically inserts and sews various types of care labels or brand tags seamlessly during the continuous 4-side overlocking process.
Expertly handles both right-angle (square) and round corners. Features automatic thread trimming with easily adjustable tail lengths for a flawless edge finish.
Completes all four sides in a single automated operation. This highly efficient design allows one operator to easily manage 3 to 4 machines simultaneously, drastically cutting labor costs.
Intuitive interface allows for quick parameter adjustments and one-button start, completely eliminating the need for highly skilled sewing operators.
