High-Speed Cotton Towel Slitting Machine with 75m/min Output Capacity
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Production Capacity | 75m/min | Core Components | PLC, Engine, Motor |
| Voltage | 380 V | Power(W) | 5kW |
| Warranty | 1 Year | Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided | Place of Origin | Jiangsu, China |
| Weight (KG) | 3000 | Brand Name | TPET |
| Dimension(l*w*h) | 3880mm×3920mm×2980mm | ||
Single item
| Model NO | ET-5834 |
| Voltage | 380V |
| Power | 5kW |
| Dimension | 3880mm×3920mm×2980mm |
| Minimum applicable towel width | 200mm |
| Air presser | 0.7MPa |
| Maximum cutting speed | 75m/min |
| Weight | 3t |
| Tool head width | Tool head width |
| Number of tool head | 7 |
| Components | Inlet frame, main frame, cutter module, outlet frame, electric control box |

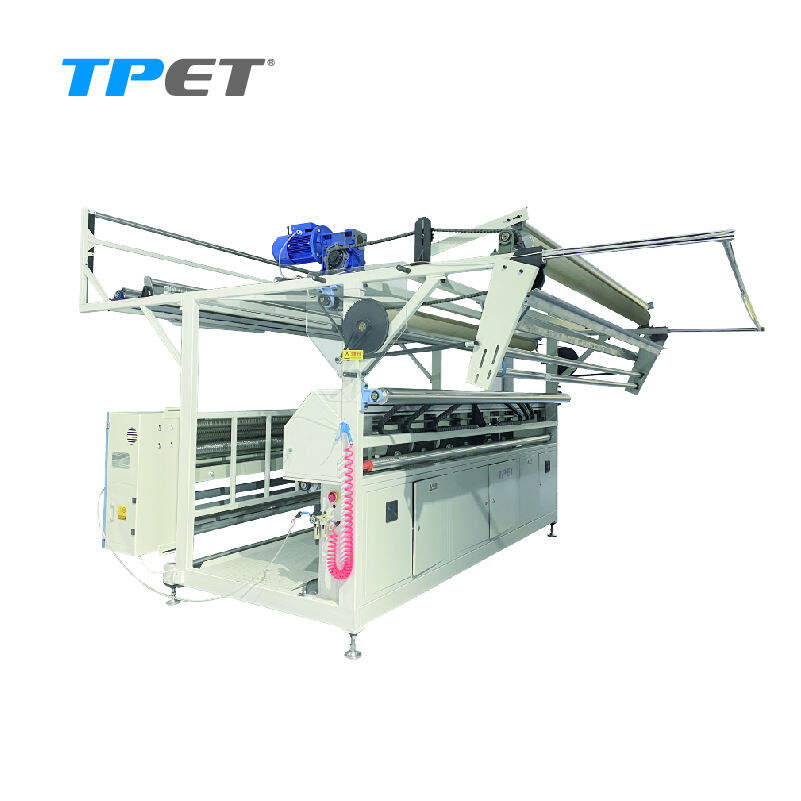

This automatic fabric roll slitting machine is specially designed for large-scale production. Its maximum slitting speed is astonishing, reaching up to 75 meters per minute.
The cutting edges are neat and perfect, and no additional thread trimming is required. It is equipped with an automatic fabric stacking (plaiting) system, which facilitates subsequent bundling and packaging operations.
Intelligently detects fabric joints/seams and automatically lifts the ultra-compact cutting head (with a width of only 18 centimeters) to prevent blade damage and ensure continuous operation.
The highly automated control system has greatly simplified the entire cutting process, requiring only one operator to easily manage the entire machine, thereby significantly reducing labor costs.
