CISMA Award-Winning All-in-One Fusing Solution with Precision Mist Humidification
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Voltage | 220 V | Core Components | PLC, Engine, Motor |
| Machinery Test Report | Provided | Video Outgoing Inspection | Provided |
| Warranty | 1 Year | Weight (kg) | 150 |
| Place of Origin | Jiangsu, China | Brand Name | TPET |
| After-Sales Service Provided | Engineers available to service machinery overseas | Power | 220V 2.8kW |
| Air Pressure | ≥0.6mpa | Applicable Industries | Hotels |
| Dimension | 110*80*110cm | ||
Single item
| Model NO. | TP-2210 |
| Weight | 150kg |
| Dimension | 110*80*110cm |
| Power | 2.8kW |
| Air pressure | 0.6MPa |
| Voltage | 220V |
| Part | By the former discharge device,fast heating,adjustable speed motor, rewinding devices and sprinkler composition; template from the floor,side fence,front guide plate,push plates |
| Motor speed | 0-70/Minute |
| Temperature range | 0-250℃ |
| Applicable Scope | garment industry,casual wear,sportswear,various types of turtle back patches, sleeve slits, pockets, edge folds and other under pressing procedures |

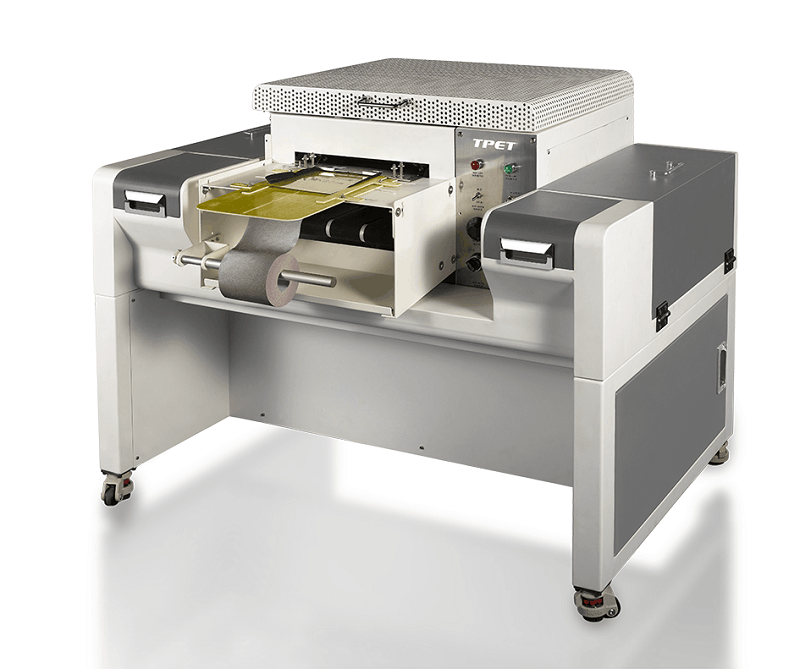

This industrial heat press machine is equipped with easily adjustable fixtures and templates. Operators can quickly switch between different sizes and shapes of products, achieving zero downtime for model changes.
This machine is equipped with a smooth continuous conveying mechanism, ensuring seamless reception and discharge of materials and enabling uninterrupted high-speed production.
The integrated micro-mist spray system can precisely control the humidity during the heating process, effectively preventing fabric damage and ensuring excellent dimensional stability.
This equipment has obtained several invention patents and utility model patents. It was highly praised at the CISMA exhibition for its cutting-edge design concept and industry-leading outstanding performance.
The intuitive control panel offers an extremely wide range of temperature and conveying speed adjustments, enabling it to easily meet the requirements of various fabrics and complex bonding processes.
This compact yet powerful device integrates functions of heating, pressurization, humidification and shaping. It can complete the entire process with extremely high efficiency, thereby significantly reducing the space occupied by your equipment and lowering operating costs.
