Automatic Ultrasonic Slitting & Cross-Cutting Machine ET5836CS/28

High-Speed X-Y Ultrasonic Cutting Line for Scalloped Edge Microfiber Cloths

Supplier’s customization ability verified

  • Machine Dimensions
  • Material Handling
  • Stitching & Speed
  • Control Systems

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Send inquiry

Specifications

  • Key attributes
  • Packaging and delivery
  • Technical Specifications
Production Capacity 4800pcs/hour Core Components PLC, Engine, Motor
Voltage 380v Power(W) 15kW
Warranty 1 Year Machinery Test Report Provided
Video Outgoing Inspection Provided Place of Origin Jiangsu, China
Weight (KG) 3000 Brand Name TPET
Dimension(l*w*h) 5000*3600*2500mm

Single item

Model NO. ET-5836CS/28
Voltage 380v
Power 15kW
Air Presser 0.6Mpa
Dimention 5000*3600*2500mm
Size Range Length: 300-1000mm Width: 300-800mm
Efficiency 4800pcs/hour
Weight 3000kg

Key Features

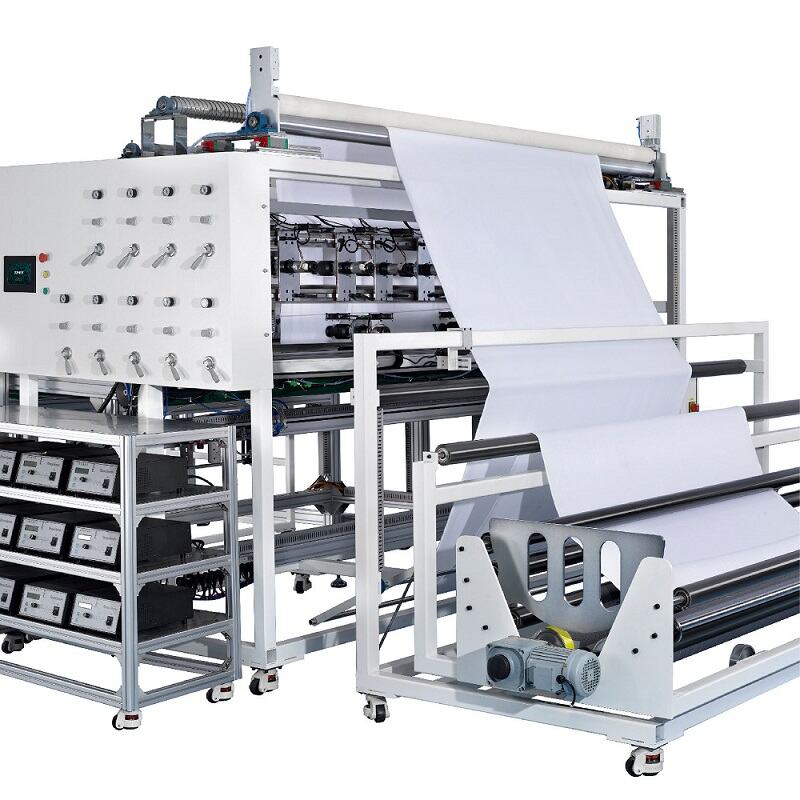

automatic ultrasonic slitting cross cutting machine et5836cs 28-2
Integrated X-Y Axis Cutting System

Seamlessly performs both longitudinal slitting and transverse cross-cutting in one continuous process, eliminating the need for secondary processing.

automatic ultrasonic slitting cross cutting machine et5836cs 28-0
Premium Ultrasonic Edge Sealing

Utilizes state-of-the-art ultrasonic generators to cut and perfectly seal the fabric edges simultaneously, preventing any fraying or loose threads.

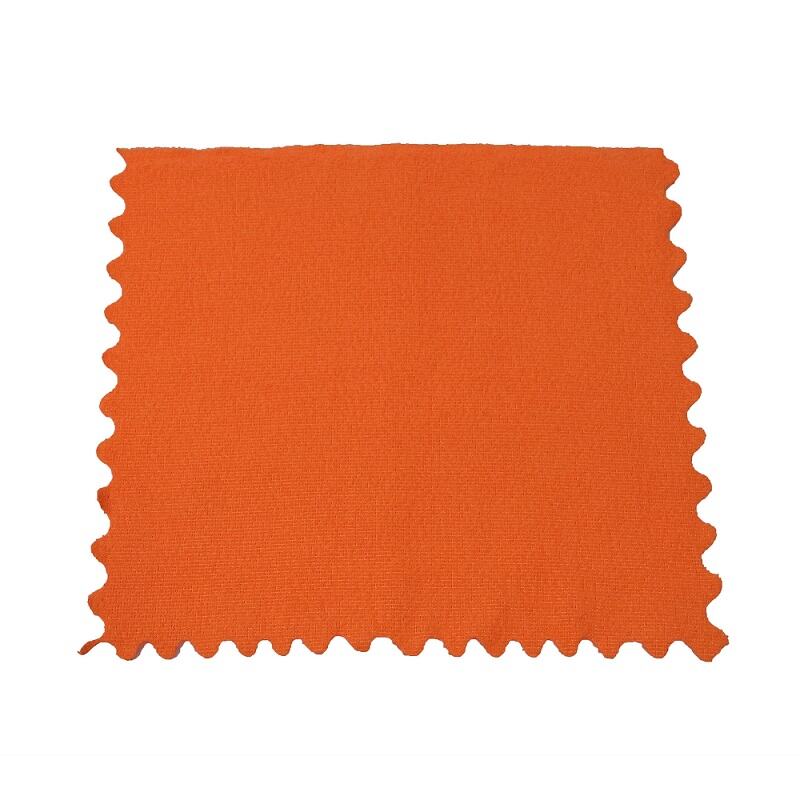

automatic ultrasonic slitting cross cutting machine et5836cs 28-3
One-Touch Digital Size Adjustment

Features an intelligent HMI that allows operators to instantly adjust cutting dimensions with a single tap, followed by automatic and neat product stacking.

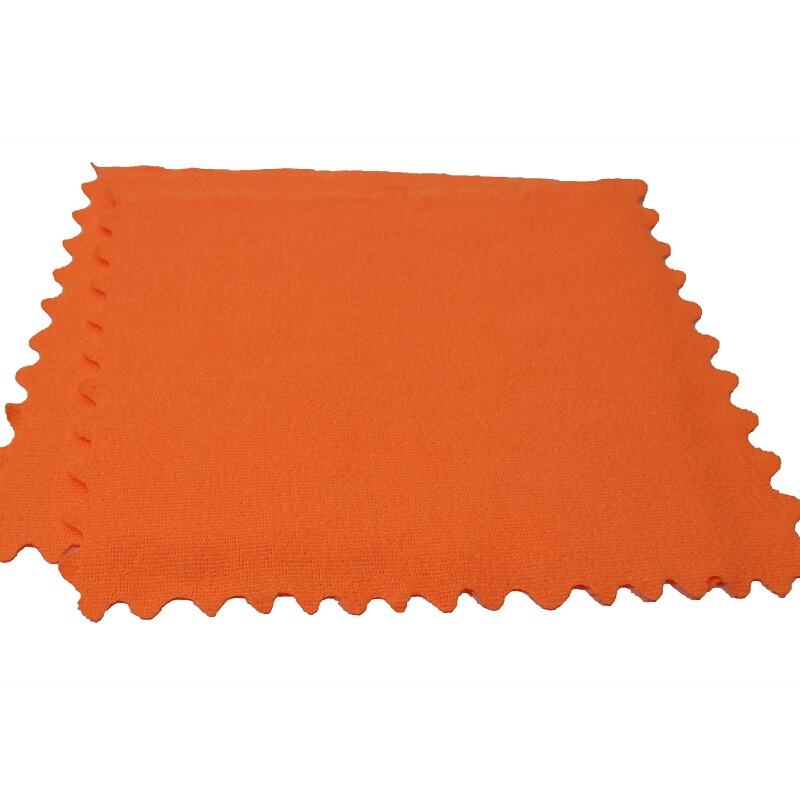

automatic ultrasonic slitting cross cutting machine et5836cs 28-4
Industry-Leading Output Rate

Designed for massive commercial production, this powerful ultrasonic slitting machine achieves an astonishing efficiency of up to 4,800 finished pieces per hour.

automatic ultrasonic slitting cross cutting machine et5836cs 28-5

Applications

High-Volume Towel and Fabric Production
High-Volume Towel and Fabric Production
automatic ultrasonic slitting cross cutting machine et5836cs 28-3
Continuous Automatic Length Cutting and Edge Trimming
Precision Pre-Processing Before Secondary Sewing Operations
Precision Pre-Processing Before Secondary Sewing Operations
automatic ultrasonic slitting cross cutting machine et5836cs 28-4
Fray-Free Wave Edge Finishing for High-Quality Textiles
