Turnkey Roll-to-Product Production Line for Flat Bed Sheets
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Voltage | 380 V | Core Components | Engine, PLC, Motor |
| Machinery Test Report | Provided | Video Outgoing Inspection | Provided |
| Warranty | 1 Year | Weight (kg) | 12000 |
| Place of Origin | Jiangsu, China | Brand Name | TPET |
Single item
| Model NO. | ET-6660 |
| Voltage | 380 V |
| Power | 32kW |
| Air Presser | 0.6Mpa |
| Dimention | 1600 * 1100 * 300 cm |
| Size Range | Length:1.5m-3.05m Width: 1.35m-3.05m |
| Efficiency | chain stitch: 300pcs/h lock stitch: 150pcs/h |
| Weight | 12000kg |
| Stitches Available | chain/lock stitch optional folding double layer hem available |

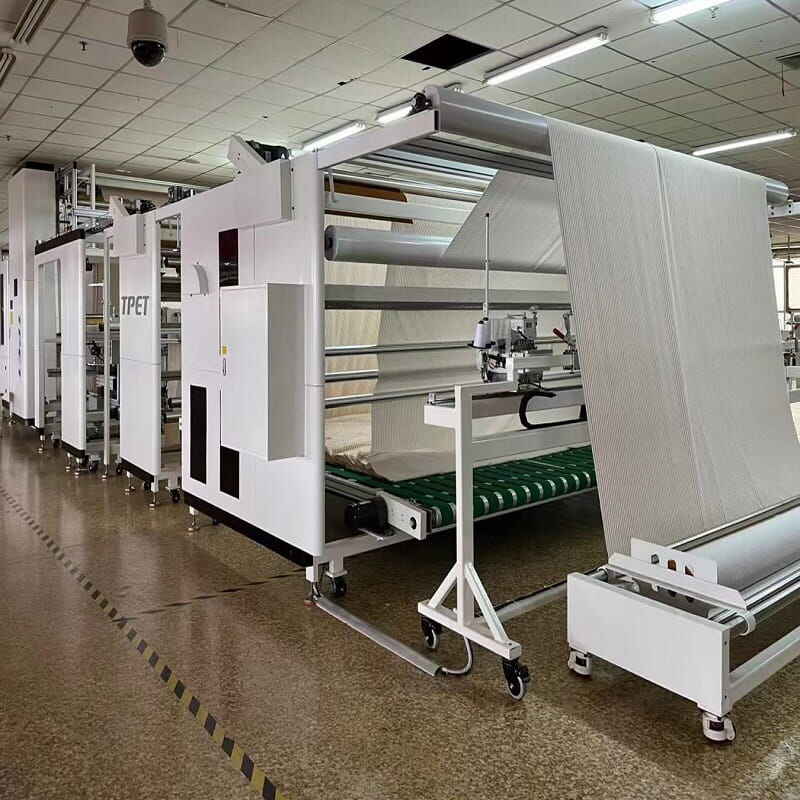

From the guiding and precise cutting of the entire fabric roll to the automatic folding of the four sides, the rolling of the edges, and the insertion of multiple labels, this bed sheet sewing machine covers the entire manufacturing process.
Equipped with a highly reliable Omron PLC control system from Japan. Its intuitive intelligent touch screen supports the "one-click start" function, ensuring quick equipment setup and extremely simple operation.

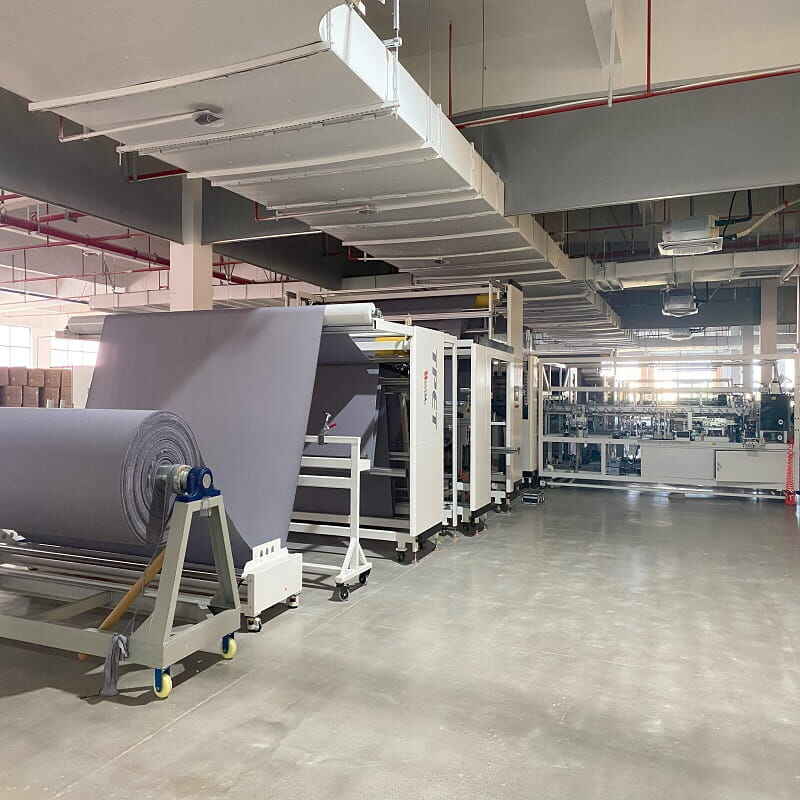

The entire roll of fabric can be directly sent into the system for processing. This system can ensure the consistency of the finished product size and the absolute straightness of the cutting edges, thereby significantly reducing material waste and effectively lowering the overall production cost.
With its highly adjustable automatic edge-folding function, this machine can perfectly adapt to various design specifications —vertical folds from 1–10 cm and horizontal folds from 1–2.5 cm—ensuring uniform, high-quality output even at high speed.
The machine is equipped with an advanced SPV data management system, which gives factory managers the ability to conduct real-time production monitoring and perform remote control via the cloud.
The machine boasts an impressive portfolio of technological assets, having obtained 11 authorized invention patents and 5 utility model patents. This not only establishes its exclusive position in technology but also ensures unparalleled long-term reliability.
