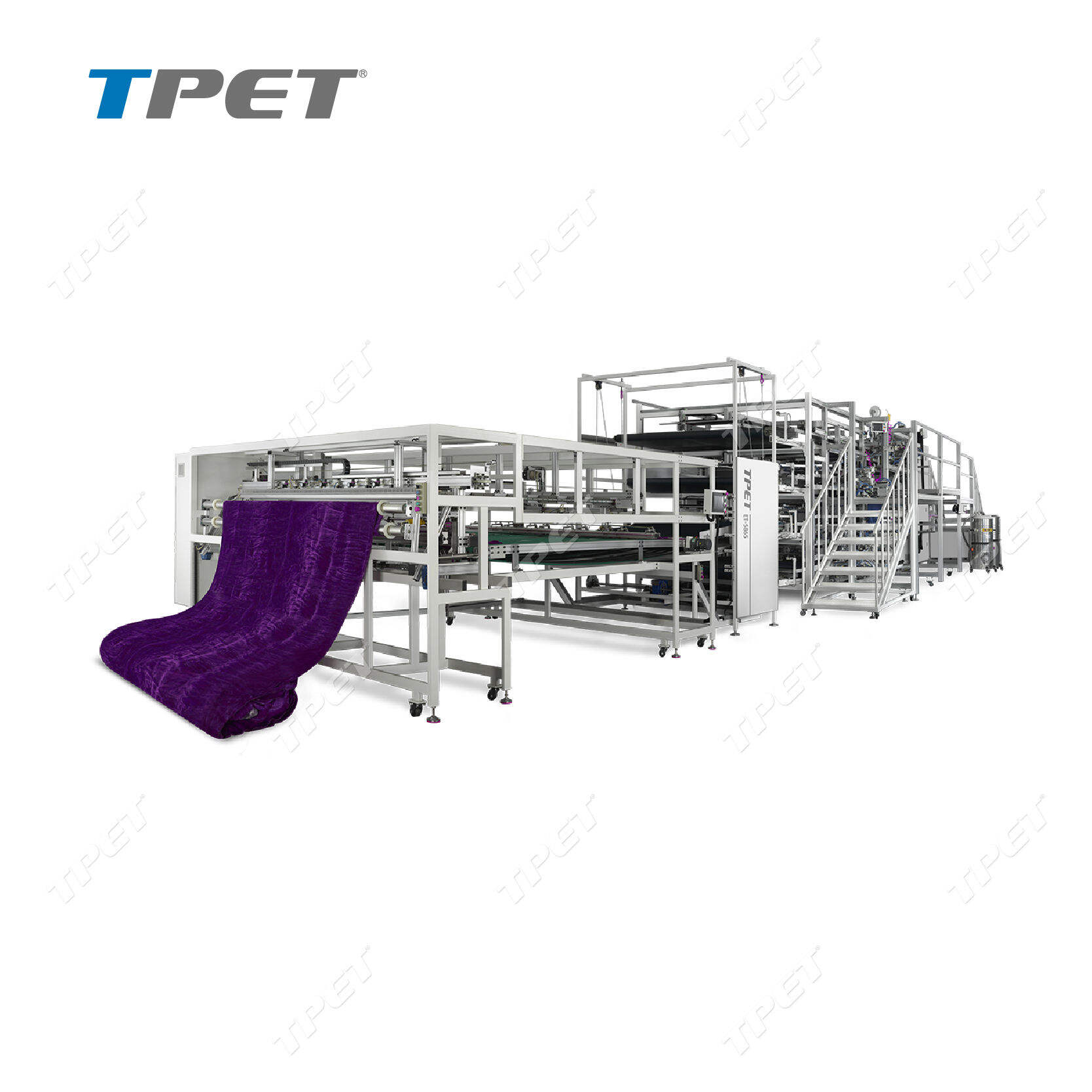

Turnkey Heavy-Duty Carpet Manufacturing System with Modular Multi-Tier Configuration
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
Send inquiry| Voltage | 380 V | Core Components | PLC, Gearbox, Motor, engine |
| Machinery Test Report | Provided | Video Outgoing Inspection | Provided |
| Warranty | 1 Year | Weight (kg) | 15000 |
| Place of Origin | Jiangsu, China | Brand Name | TPET |
| Capacity | 90pcs/h, Single floor: 60pcs/h | Power | 27kw |
| Air Pressure | 0.6mpa | Type | Txetile Machine |
| Dimension | 2000*540*340cm | Size Range | 1300-2400mm |
Single item
| Model NO | ET-5867 |
| Weight | 15000kg |
| Power | 27kw |
| Air pressure | 0.6MPa |
| Voltage | 380V |
| Hour Capacity | 90pcs/h |
| Dimension | 2000*540*340cm |
| Size range | 1300-2400mm |
| Sewing speed | 4000r/min |
Even with the standard single-layer configuration, this sturdy and durable carpet binding machine can smoothly complete the processing and edge-binding procedures, capable of handling up to 60 thick carpets per hour.
Highly flexible and customizable, the machine is designed to meet your extremely demanding production needs. Its architecture supports optional upgrades to a four-layer configuration, thereby doubling your average daily manufacturing capacity.
Its built-in intelligent label module can automatically feed the materials and precisely sew the brand labels onto the carpet without interrupting the high-speed workflow.
Designed specifically for heavy-duty carpet materials, this machine can automatically complete the alignment, cutting and four-side stitching processes. It employs high-quality and highly durable edge binding or lock stitching techniques to ensure a flawless final product.
