Fully Automatic Shower Curtain Making Machine (4-Sided Sewing) ET-2218/KZ

Turnkey 4-Sided Manufacturing Line for Waterproof Shower Curtains

Supplier’s customization ability verified

  • Machine Dimensions
  • Material Handling
  • Stitching & Speed
  • Control Systems

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Send inquiry

Specifications

  • Key attributes
  • Packaging and delivery
  • Technical Specifications
Production Capacity 500pcs(1.8m*1.8m) Core Components PLC
Voltage 380 V Power(W) 19kW
Warranty 1 Year Machinery Test Report Provided
Video Outgoing Inspection Provided Place of Origin Jiangsu, China
Weight (KG) 6000 Brand Name TPET
Dimension(l*w*h) 1400 * 1000 * 300 cm

Single item

Model NO. ET-2218/KZ
Voltage 380 V
Power 19kW
Air Presser 0.6Mpa
Frequencey 50Hz
Dimention 1400 * 1000 * 300cm
Size Range length 2500mm * width 1800mm
Sewing SPD 2000-4000r/min
Efficiency 500pcs/h(1.8m*1.8m)
Weight 6000kg

Video

Key Features

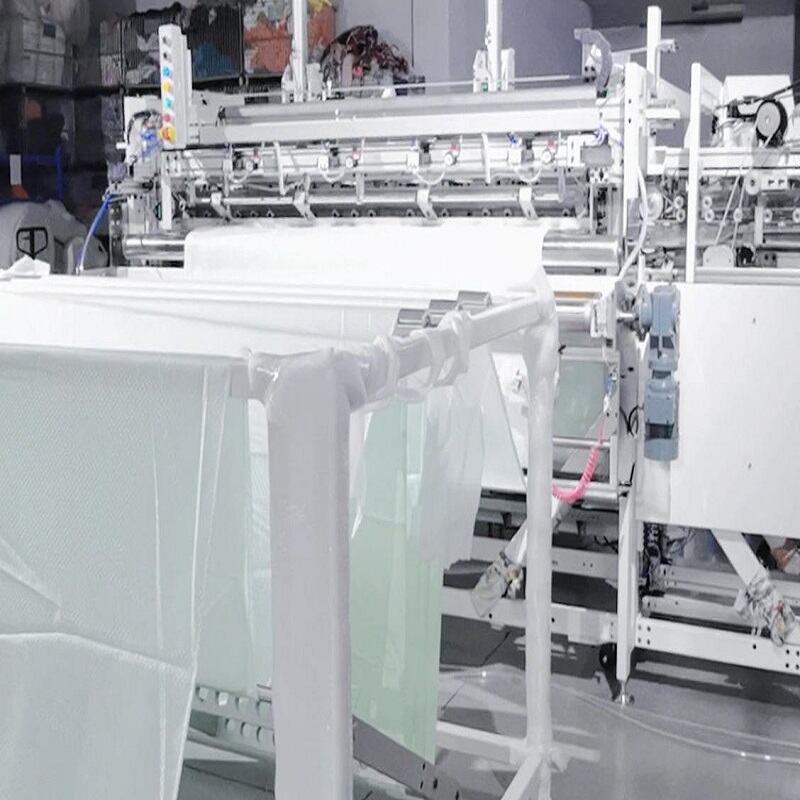

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-1
Automated 4-Sided Sewing Workflow

The shower curtain making machine can automatically fold and stitch the four edges of the entire roll of raw fabric, and through a continuous and efficient process, directly transform it into finished shower curtains.

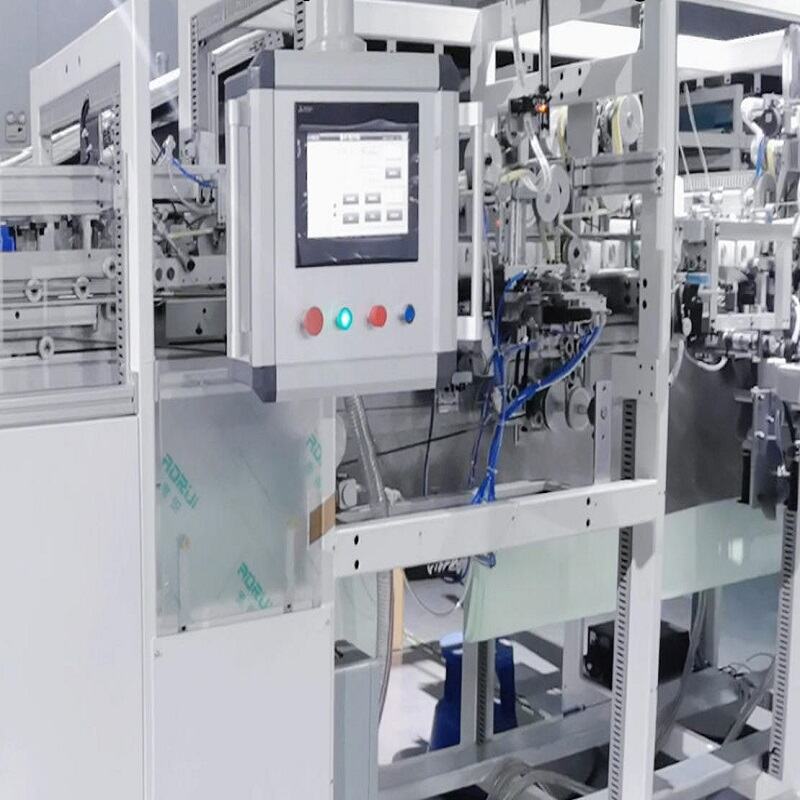

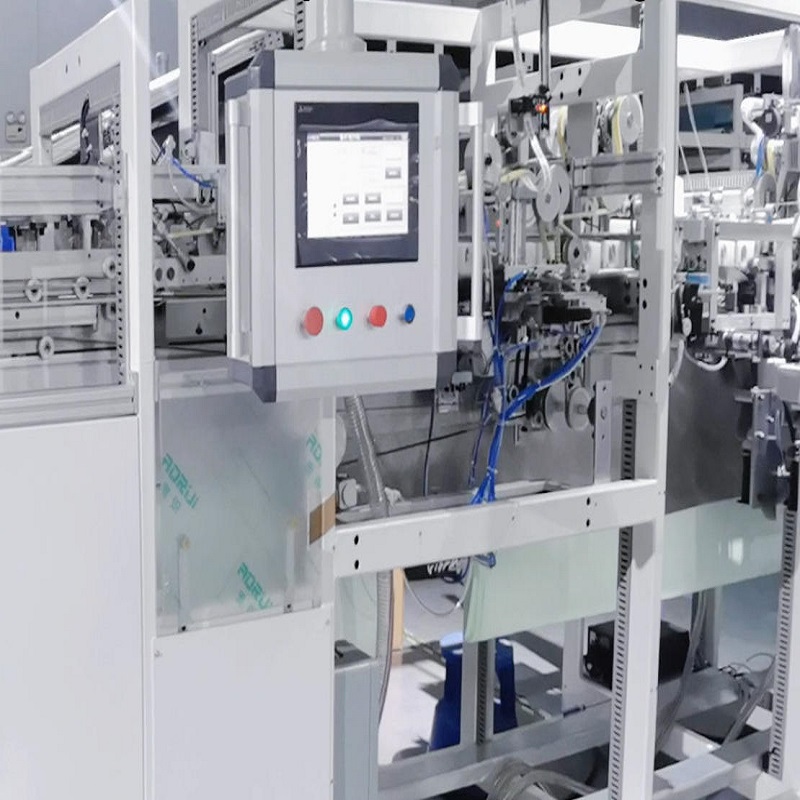

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-2
Precision Lock Stitching (12m/min)

Equipped with a heavy-duty lock stitch machine head, it can run at a speed of up to 12 meters per minute. The seams it produces are smooth and extremely strong, making it particularly suitable for various waterproof shower curtain materials.

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-4
Ultra-Fast Chain Stitching (18m/min)

After switching to the chain stitch configuration, the sewing speed can soar to an astonishing 18 meters per minute, enabling you to maximize your daily production output when handling large-scale orders.

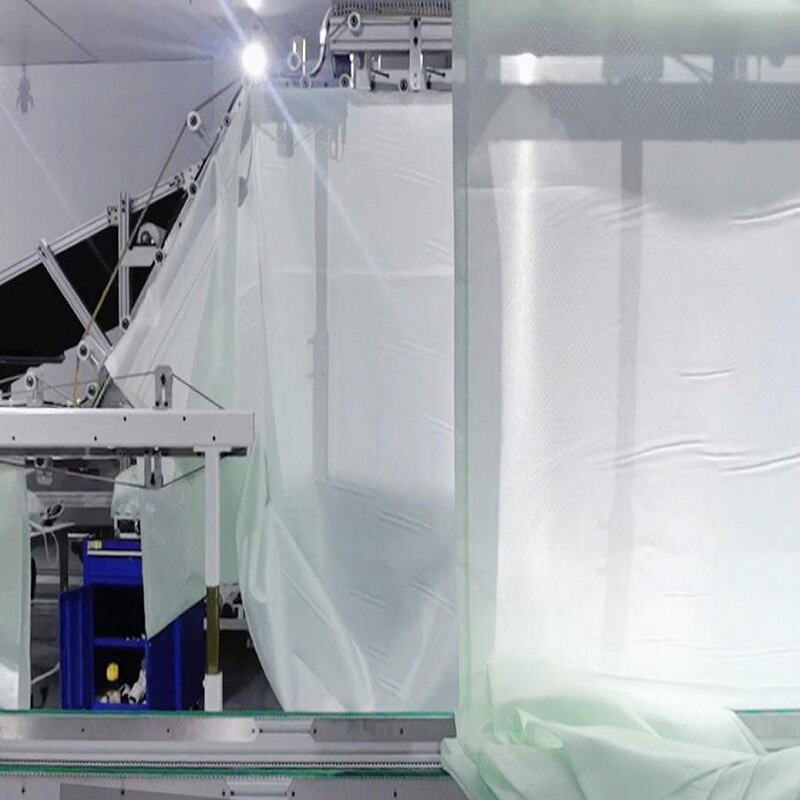

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-4
Proprietary Patented Technology

This cutting-edge shower curtain making machine is backed by 3 authorized invention patents and 1 utility model patent, which guarantees its unique performance and unparalleled operational stability.

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-6

Applications

fully automatic shower curtain making machine 4 sided sewing et 2218 kz-5
Shuttle Stitch and Chain Stitch
fully automatic shower curtain making machine 4 sided sewing et 2218 kz-3
Length Hemming with Edge Folding
fully automatic shower curtain making machine 4 sided sewing et 2218 kz-4
Cross Hemming with Edge Folding
